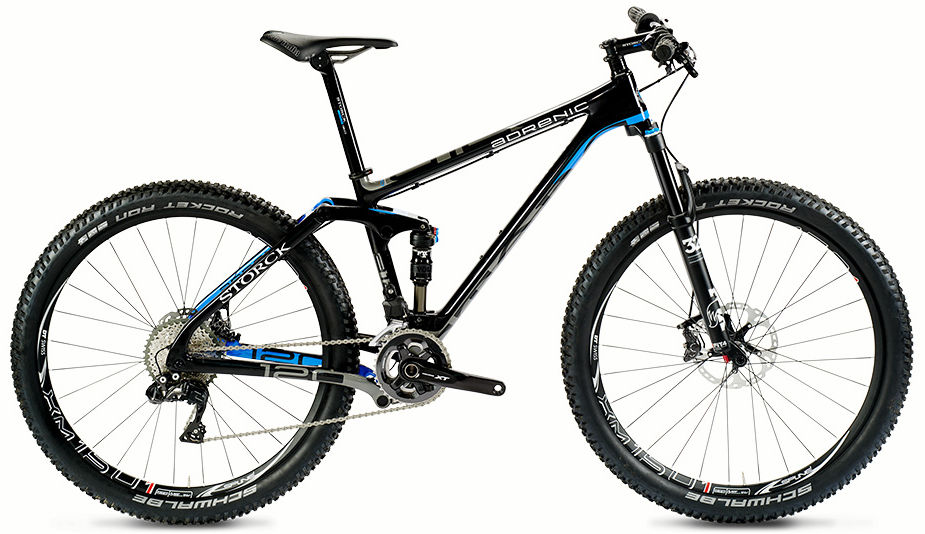

2017 Storck Adrenic geometry
Full frame geometry for the 2017 Storck Adrenic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 560 | 405 | 73 | 70 | 95 | 585 | 400 | 800 | 30 | 460 |
| S | 564 | 393 | 73 | 69.5 | 90 | 565 | 380 | 792 | 30 | 460 |
| L | 576 | 434 | 73 | 70 | 100 | 610 | 440 | 829 | 30 | 460 |
| XL | 601 | 446 | 73 | 70.5 | 105 | 630 | 480 | 863 | 30 | 460 |
All measurements in millimetres unless marked (°) for angles.
