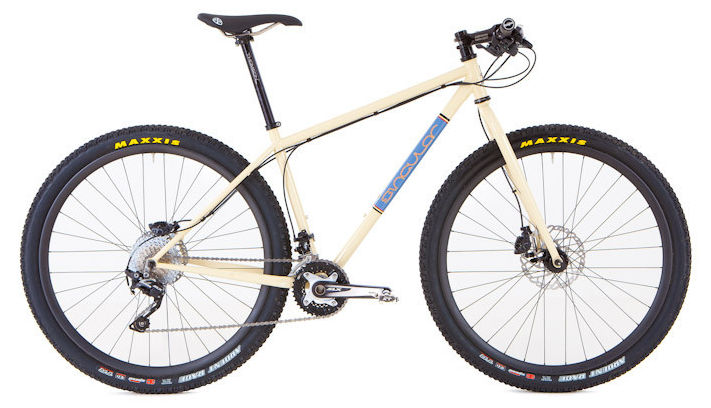

2015 Singular Swift geometry
Full frame geometry for the 2015 Singular Swift, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 588 | 412 | 73 | 71.5 | 100 | 592 | 450 | 796 | 60 | 638 | 450 | 1082 | 45 | 75 |
| L | 609 | 420 | 72 | 72 | 120 | 618 | 500 | 830 | 60 | 648 | 450 | 1092 | 45 | 72 |
| XL | 628 | 438 | 72 | 72 | 140 | 642 | 550 | 863 | 60 | 672 | 450 | 1116 | 45 | 72 |
All measurements in millimetres unless marked (°) for angles.
