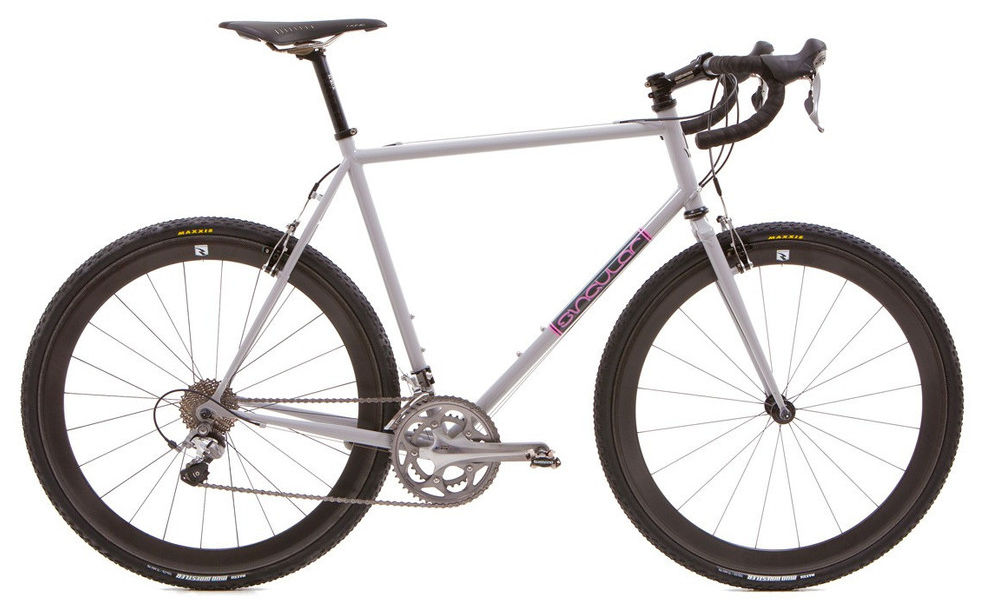

2015 Singular Kite geometry
Full frame geometry for the 2015 Singular Kite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 566 | 367 | 73 | 72 | 140 | 540 | 547 | 799 | 70 | 577 | 437 | 1006 | 45 | 65 |
| M | 585 | 370 | 72 | 72 | 160 | 560 | 552 | 819 | 70 | 586 | 437 | 1015 | 45 | 65 |
| L | 600 | 385 | 72 | 72 | 175 | 580 | 587 | 836 | 70 | 606 | 437 | 1036 | 45 | 65 |
| XL | 614 | 401 | 72 | 72 | 190 | 600 | 607 | 852 | 70 | 626 | 437 | 1056 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
