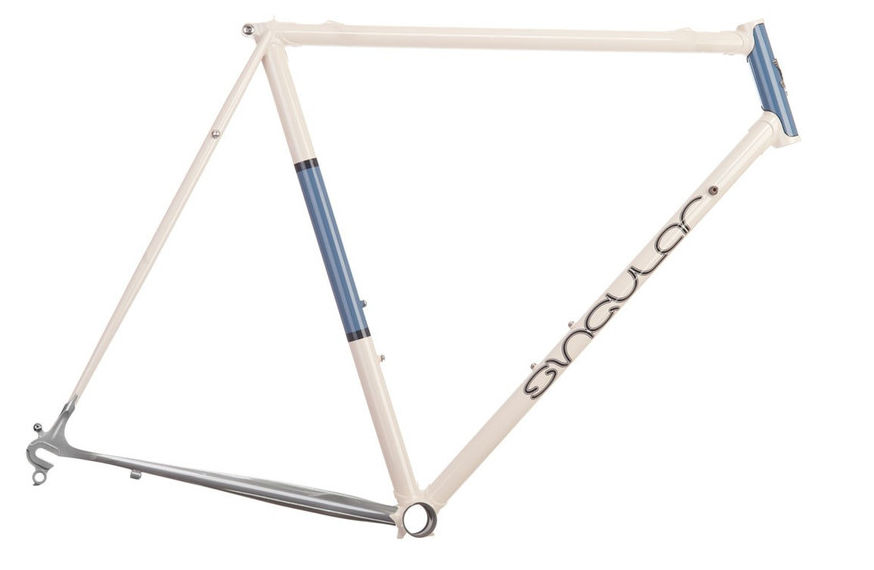

2015 Singular Osprey geometry
Full frame geometry for the 2015 Singular Osprey, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 505 | 365 | 74 | 72 | 100 | 510 | 515 | 764 | 70 | 561 | 425 | 967 | 50 | 58 |
| M | 540 | 375 | 73.5 | 72.5 | 130 | 535 | 555 | 798 | 75 | 576 | 425 | 987 | 50 | 57 |
| L | 571 | 391 | 73 | 73 | 160 | 565 | 585 | 825 | 75 | 596 | 425 | 1007 | 50 | 57 |
| XL | 599 | 412 | 73 | 73 | 190 | 595 | 615 | 854 | 75 | 626 | 425 | 1038 | 50 | 57 |
All measurements in millimetres unless marked (°) for angles.
