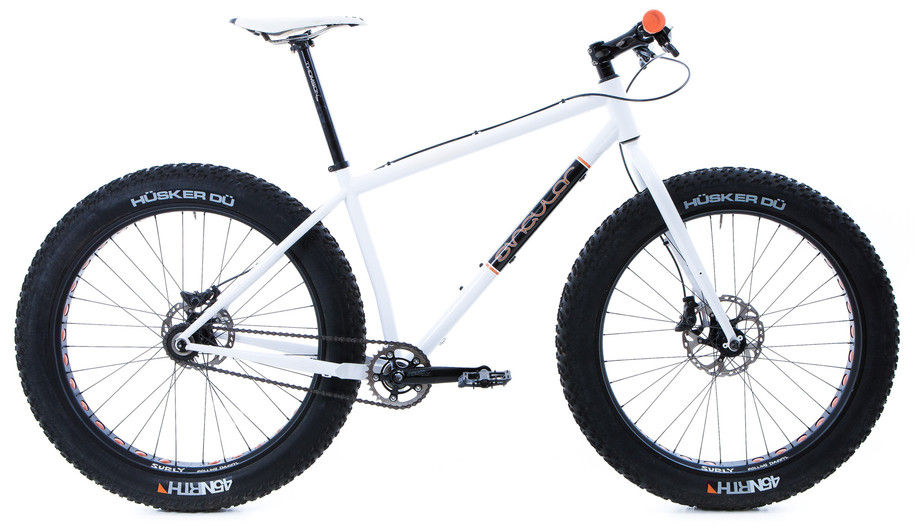

2015 Singular Puffin geometry
Full frame geometry for the 2015 Singular Puffin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 588 | 410 | 73 | 70 | 100 | 590 | 400 | 60 | 664 | 435 | 1092 | 55 | 78 |
| S | 588 | 390 | 73.5 | 70 | 100 | 564 | 380 | 60 | 643 | 435 | 1071 | 55 | 78 |
| L | 607 | 423 | 72 | 70 | 120 | 620 | 450 | 60 | 683 | 435 | 1111 | 55 | 78 |
| XL | 626 | 447 | 72 | 70 | 140 | 650 | 500 | 60 | 714 | 435 | 1142 | 55 | 78 |
All measurements in millimetres unless marked (°) for angles.
