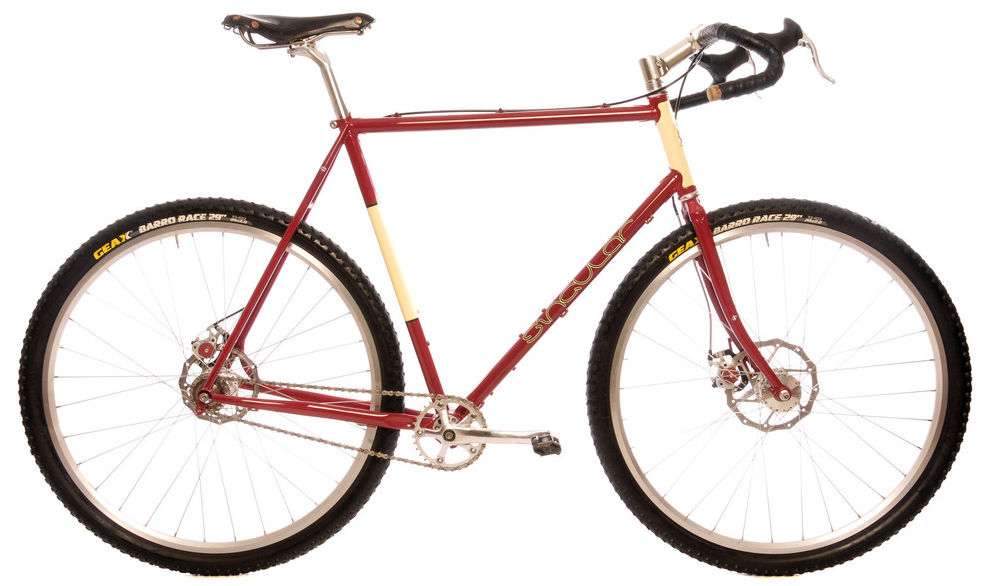

2015 Singular Peregrine geometry
Full frame geometry for the 2015 Singular Peregrine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 523 | 350 | 73 | 71 | 100 | 510 | 520 | 777 | 70 | 561 | 430 | 983 | 50 | 64 |
| M | 552 | 361 | 72 | 71 | 130 | 540 | 550 | 832 | 70 | 582 | 445 | 1018 | 50 | 74 |
| L | 580 | 377 | 72 | 71 | 160 | 565 | 575 | 857 | 70 | 607 | 445 | 1044 | 50 | 74 |
| XL | 601 | 395 | 72 | 71.5 | 180 | 590 | 610 | 882 | 70 | 627 | 445 | 1066 | 50 | 74 |
All measurements in millimetres unless marked (°) for angles.
