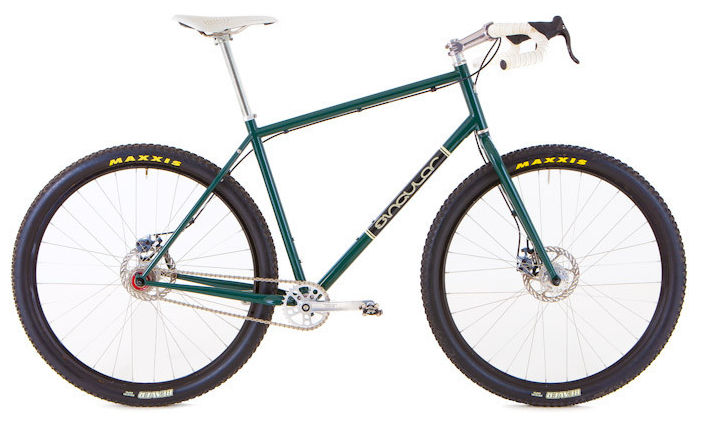

2015 Singular Gryphon geometry
Full frame geometry for the 2015 Singular Gryphon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 593 | 379 | 72.5 | 70 | 130 | 566 | 430 | 795 | 70 | 631 | 445 | 1067 | 55 | 76 |
| L | 619 | 397 | 72.5 | 70.5 | 155 | 592 | 480 | 822 | 70 | 652 | 445 | 1088 | 55 | 73 |
| XL | 647 | 408 | 72 | 70.5 | 185 | 618 | 530 | 855 | 70 | 673 | 445 | 1115 | 55 | 73 |
All measurements in millimetres unless marked (°) for angles.
