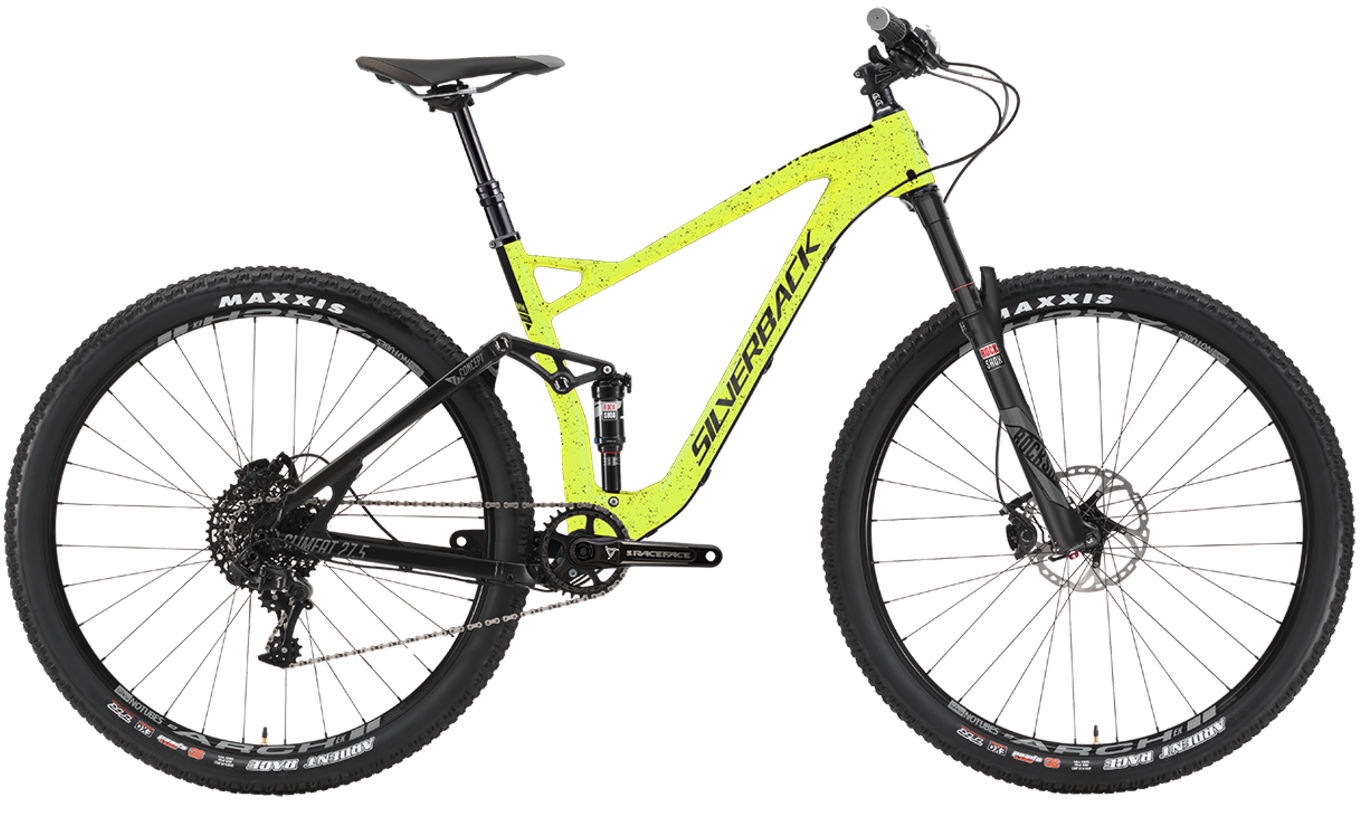

2017 Silverback Synergy Slim geometry
Full frame geometry for the 2017 Silverback Synergy Slim, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 400 | 74 | 69.5 | 100 | 570 | 400 | 816 | 445 | 1104 |
| M | 604 | 427 | 74 | 69.5 | 110 | 600 | 450 | 814 | 445 | 1131 |
| L | 614 | 454 | 74 | 69.5 | 120 | 630 | 505 | 817 | 445 | 1166 |
All measurements in millimetres unless marked (°) for angles.
