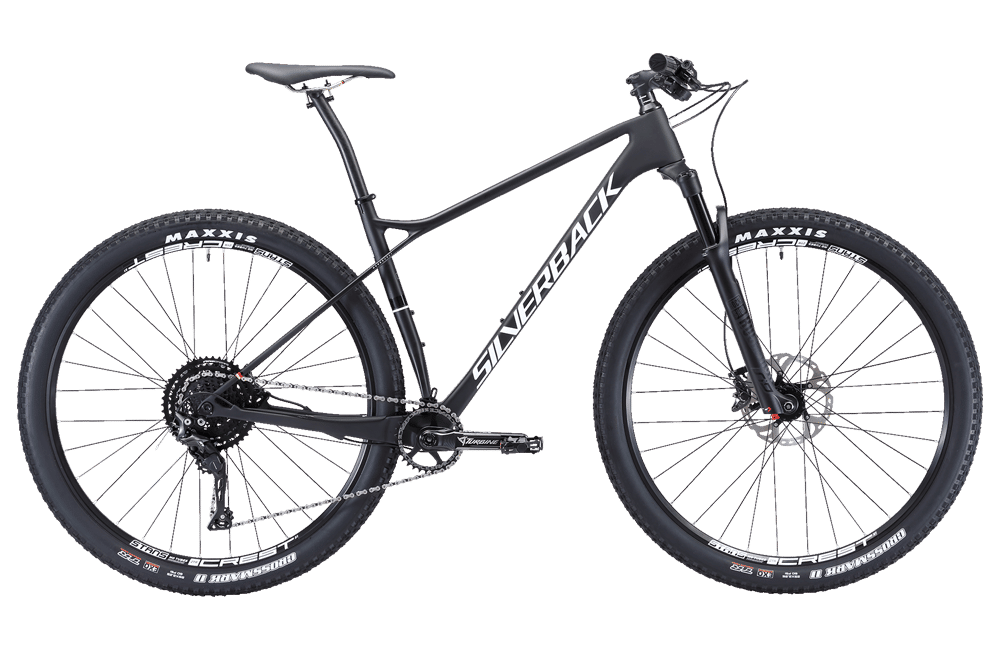

2019 Silverback Superspeed geometry
Full frame geometry for the 2019 Silverback Superspeed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 394 | 73.4 | 69.5 | 90 | 575 | 422 | 762 | 422 | 1064 |
| M | 620 | 420 | 73.4 | 69.5 | 105 | 605 | 472 | 789 | 422 | 1095 |
| L | 634 | 439 | 73.4 | 69.5 | 120 | 628 | 522 | 804 | 422 | 1118 |
All measurements in millimetres unless marked (°) for angles.
