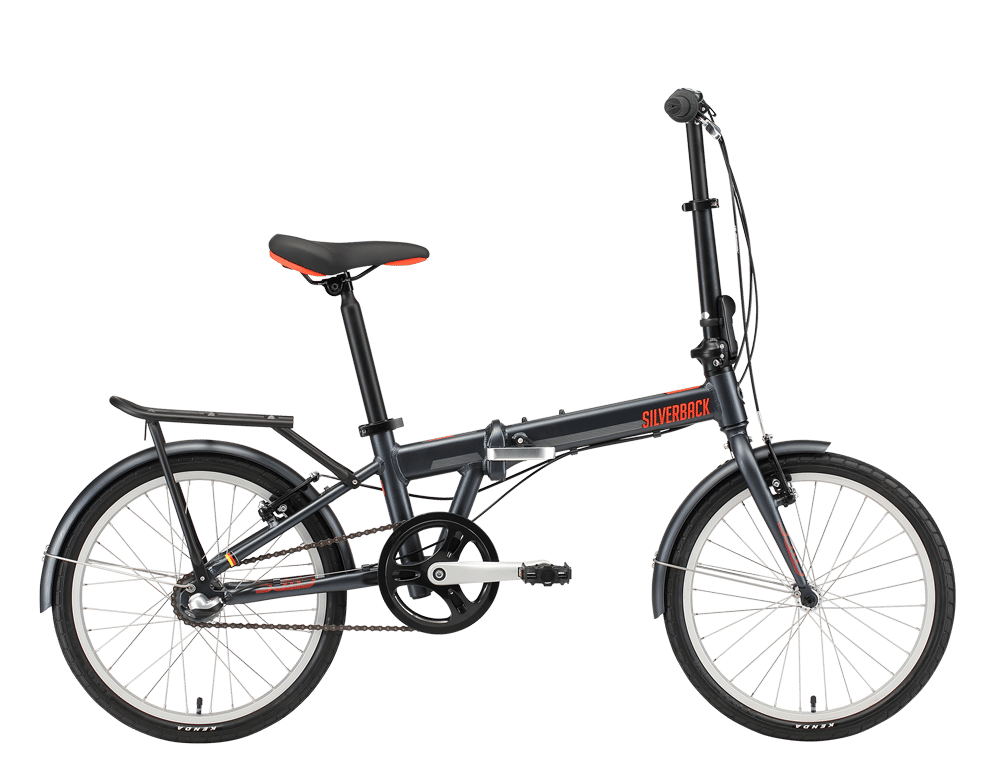

2018 Silverback Soto geometry
Full frame geometry for the 2018 Silverback Soto, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 324 | 469 | 76 | 74 | 86 | 586 | 293 | 249 | 393 | 1006 |
All measurements in millimetres unless marked (°) for angles.
