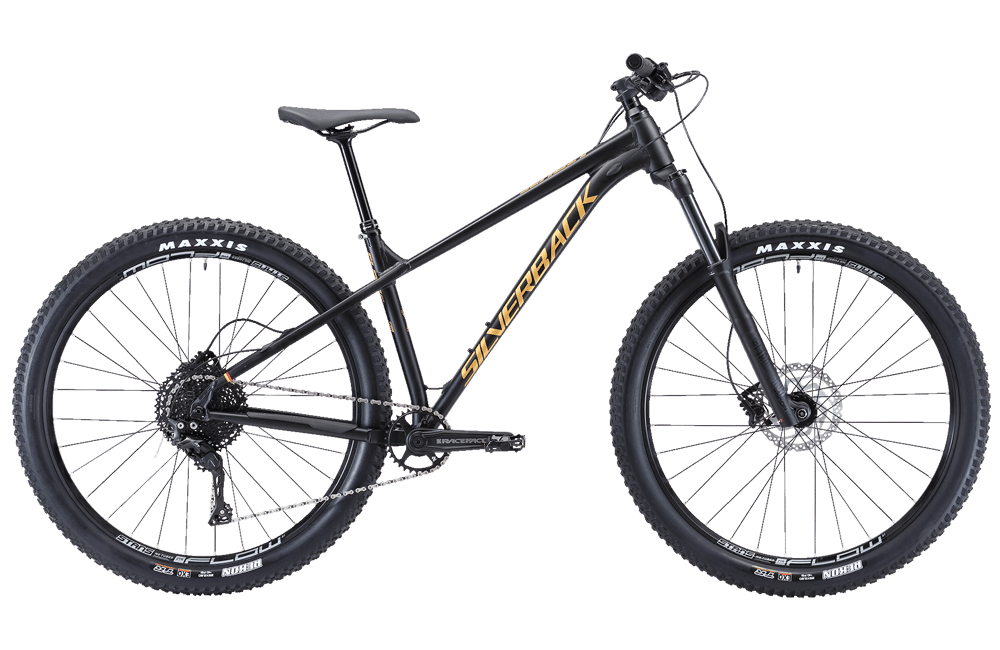

2019 Silverback Slade Trail geometry
Full frame geometry for the 2019 Silverback Slade Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 415 | 76 | 66 | 100 | 582 | 390 | 779 | 430 | 1127 |
| L | 634 | 460 | 76 | 66 | 110 | 630 | 450 | 766 | 430 | 1176 |
| M | 634 | 440 | 76 | 66 | 110 | 610 | 420 | 766 | 430 | 1156 |
| XL | 643 | 490 | 76 | 66 | 120 | 662 | 490 | 756 | 430 | 1210 |
All measurements in millimetres unless marked (°) for angles.
