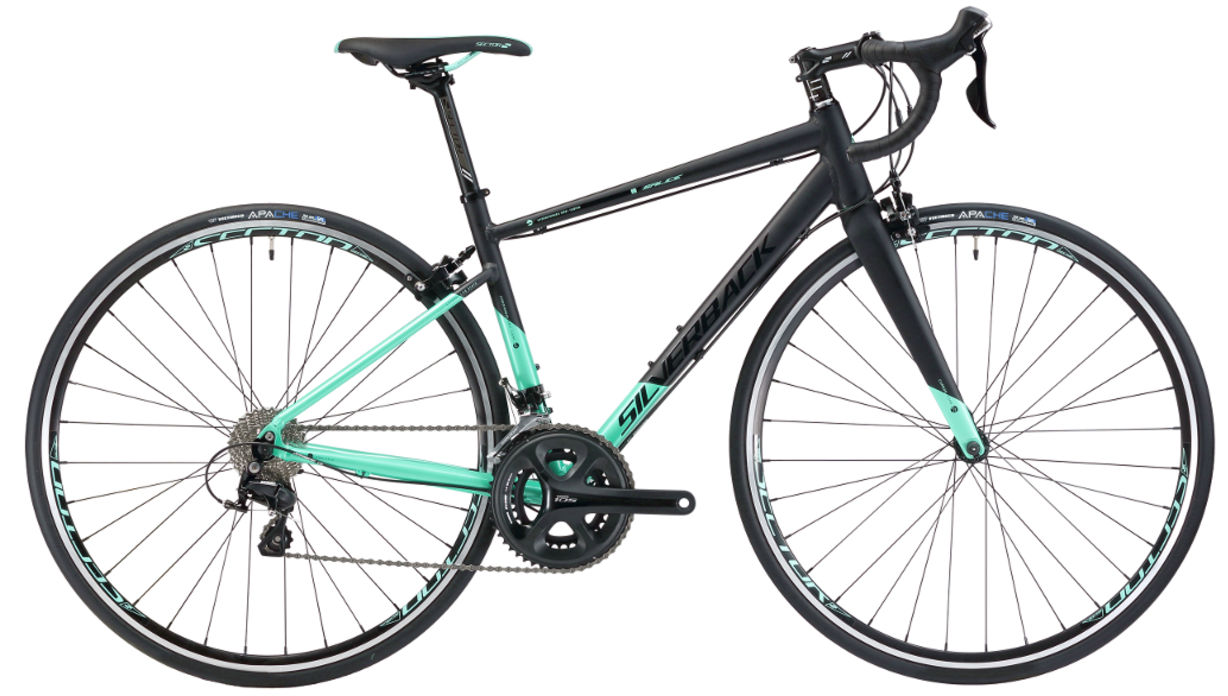

2017 Silverback Salice geometry
Full frame geometry for the 2017 Silverback Salice, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 514 | 357 | 75 | 70.5 | 115 | 495 | 380 | 673 | 412 | 975 | 52 |
| XS | 528 | 366 | 75 | 71.5 | 125 | 508 | 410 | 696 | 412 | 980 | 52 |
| S | 544 | 371 | 74.5 | 72 | 140 | 522 | 440 | 720 | 412 | 986 | 52 |
| M | 568 | 372 | 74 | 72.5 | 160 | 535 | 470 | 746 | 412 | 980 | 45 |
| L | 591 | 380 | 73.5 | 72.5 | 185 | 555 | 500 | 772 | 412 | 995 | 45 |
| XL | 615 | 387 | 73 | 72.5 | 210 | 575 | 530 | 798 | 412 | 1010 | 45 |
| XXL | 641 | 393 | 72.5 | 73 | 235 | 595 | 560 | 826 | 412 | 1018 | 45 |
All measurements in millimetres unless marked (°) for angles.
