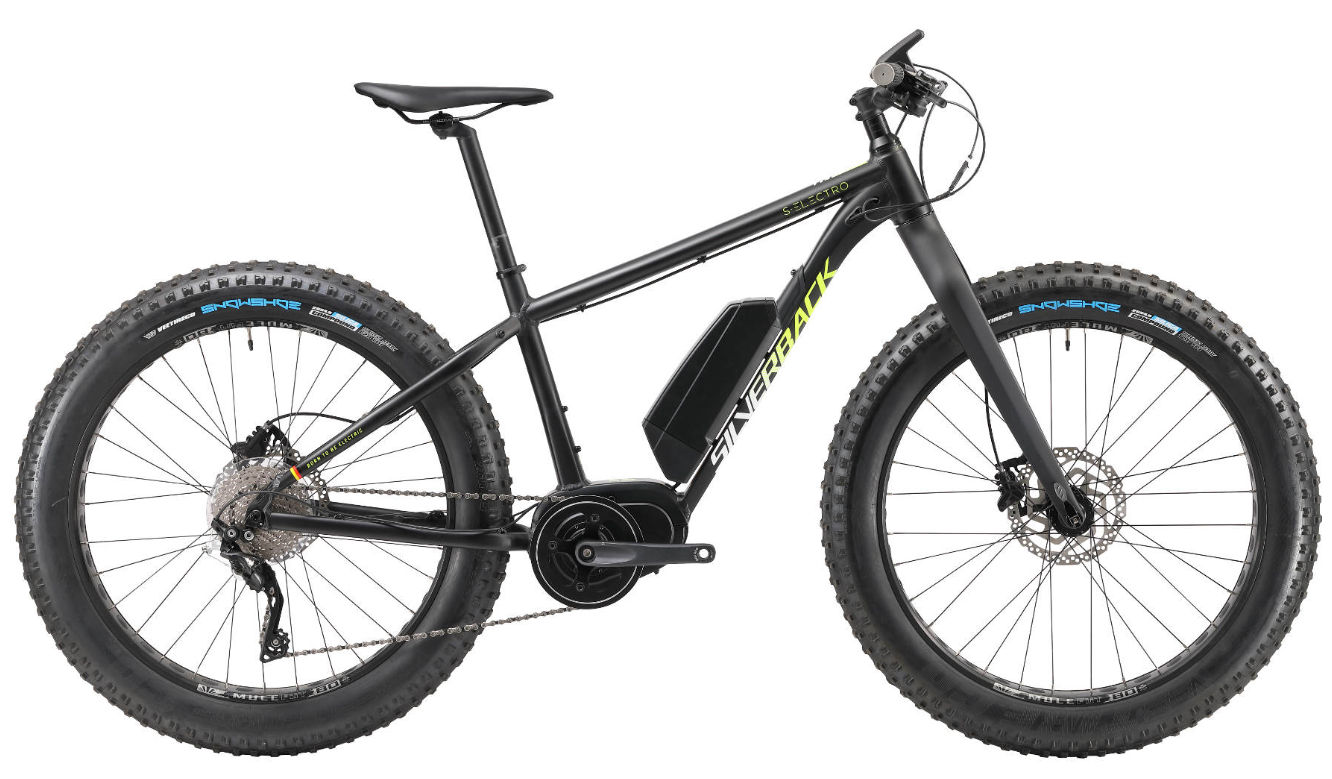

2018 Silverback S-Electro geometry
Full frame geometry for the 2018 Silverback S-Electro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 434 | 73.5 | 69.5 | 110 | 610 | 430 | 783 | 485 | 1171 |
| S | 595 | 404 | 73.5 | 69.5 | 110 | 580 | 380 | 770 | 485 | 1141 |
| L | 600 | 452 | 73.5 | 69.5 | 115 | 630 | 480 | 806 | 485 | 1191 |
| XL | 614 | 468 | 73.5 | 69.5 | 130 | 650 | 530 | 838 | 485 | 1212 |
All measurements in millimetres unless marked (°) for angles.
