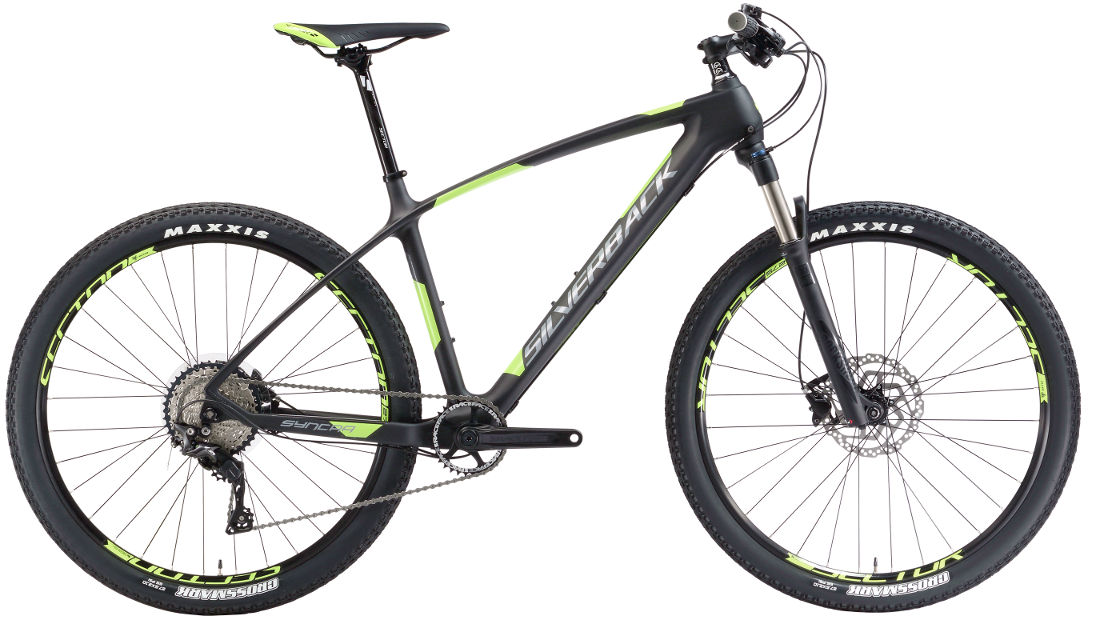

2017 Silverback Syncra geometry
Full frame geometry for the 2017 Silverback Syncra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 395 | 73.5 | 69.5 | 105 | 568 | 390 | 778 | 428 | 1069 |
| M | 594 | 427 | 73.5 | 69.5 | 115 | 603 | 455 | 810 | 428 | 1105 |
| L | 604 | 446 | 73.5 | 69.5 | 125 | 628 | 500 | 835 | 428 | 1133 |
All measurements in millimetres unless marked (°) for angles.
