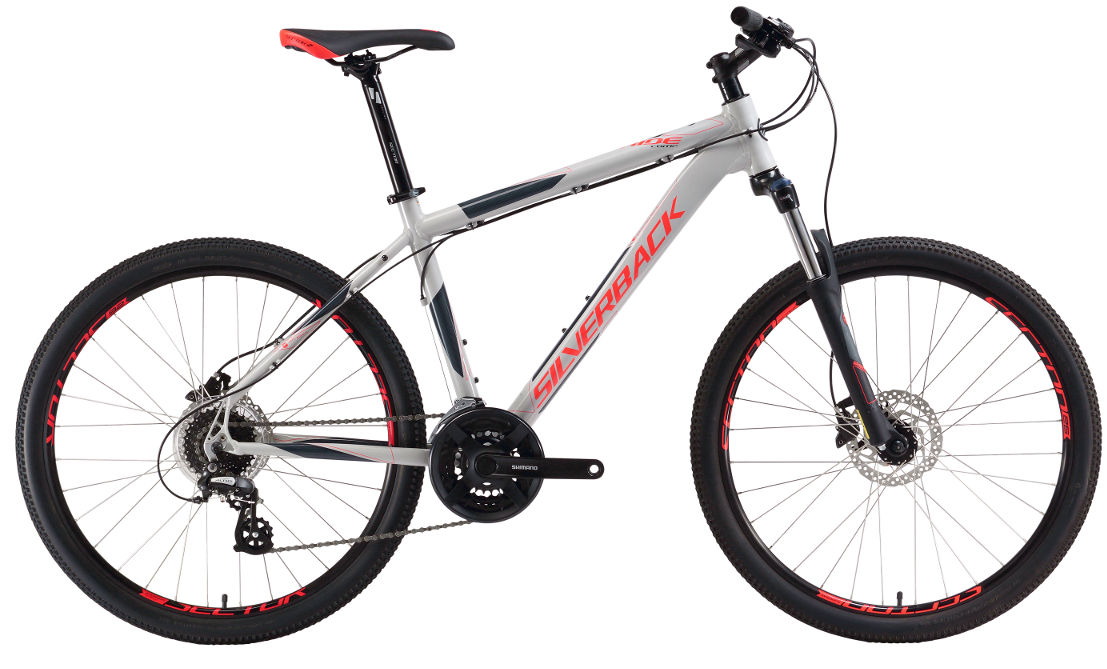

2017 Silverback Stride geometry
Full frame geometry for the 2017 Silverback Stride, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 568 | 381 | 73 | 69.5 | 100 | 535 | 340 | 731 | 428 | 1032 |
| S | 578 | 398 | 73 | 69.5 | 110 | 555 | 390 | 770 | 428 | 1053 |
| M | 587 | 420 | 73 | 69.5 | 120 | 575 | 450 | 802 | 428 | 1074 |
| L | 606 | 444 | 73 | 69.5 | 130 | 600 | 500 | 837 | 428 | 1099 |
| XL | 624 | 469 | 73 | 69.5 | 150 | 630 | 550 | 869 | 428 | 1130 |
All measurements in millimetres unless marked (°) for angles.
