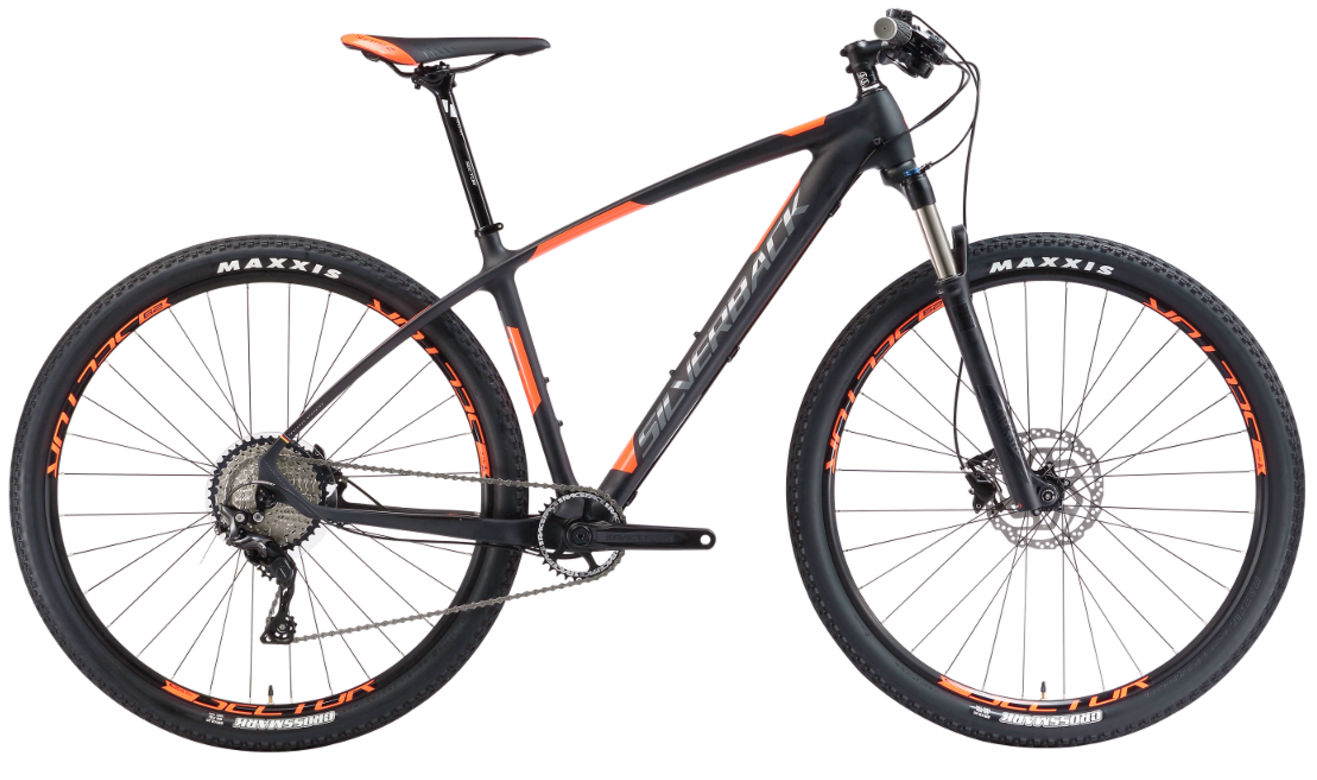

2017 Silverback Storm geometry
Full frame geometry for the 2017 Silverback Storm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 397 | 73 | 70.5 | 105 | 587 | 420 | 811 | 442 | 1083 |
| L | 618 | 438 | 73 | 71 | 105 | 627 | 480 | 841 | 442 | 1119 |
| M | 618 | 415 | 73 | 71 | 105 | 604 | 450 | 826 | 442 | 1096 |
All measurements in millimetres unless marked (°) for angles.
