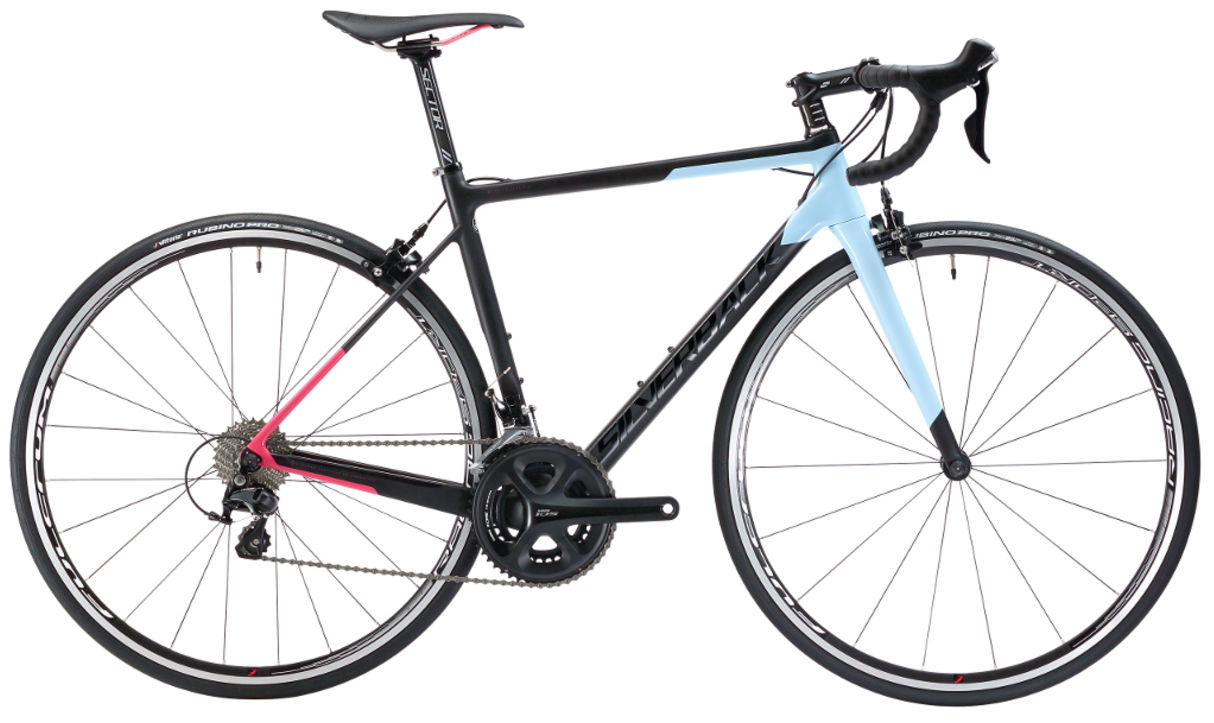

2017 Silverback Stella geometry
Full frame geometry for the 2017 Silverback Stella, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 494 | 368 | 75 | 70.5 | 100 | 500 | 413 | 698 | 405 | 972 | 52 |
| XS | 512 | 373 | 75 | 71.5 | 115 | 510 | 452 | 716 | 405 | 974 | 52 |
| S | 523 | 380 | 74.5 | 72 | 125 | 525 | 492 | 750 | 405 | 980 | 52 |
| M | 535 | 392 | 74 | 73.2 | 135 | 545 | 533 | 776 | 405 | 976 | 43 |
| L | 552 | 396 | 73.5 | 73.2 | 150 | 560 | 563 | 798 | 408 | 989 | 43 |
| XL | 572 | 405 | 73 | 73.5 | 170 | 580 | 593 | 822 | 408 | 1001 | 43 |
All measurements in millimetres unless marked (°) for angles.
