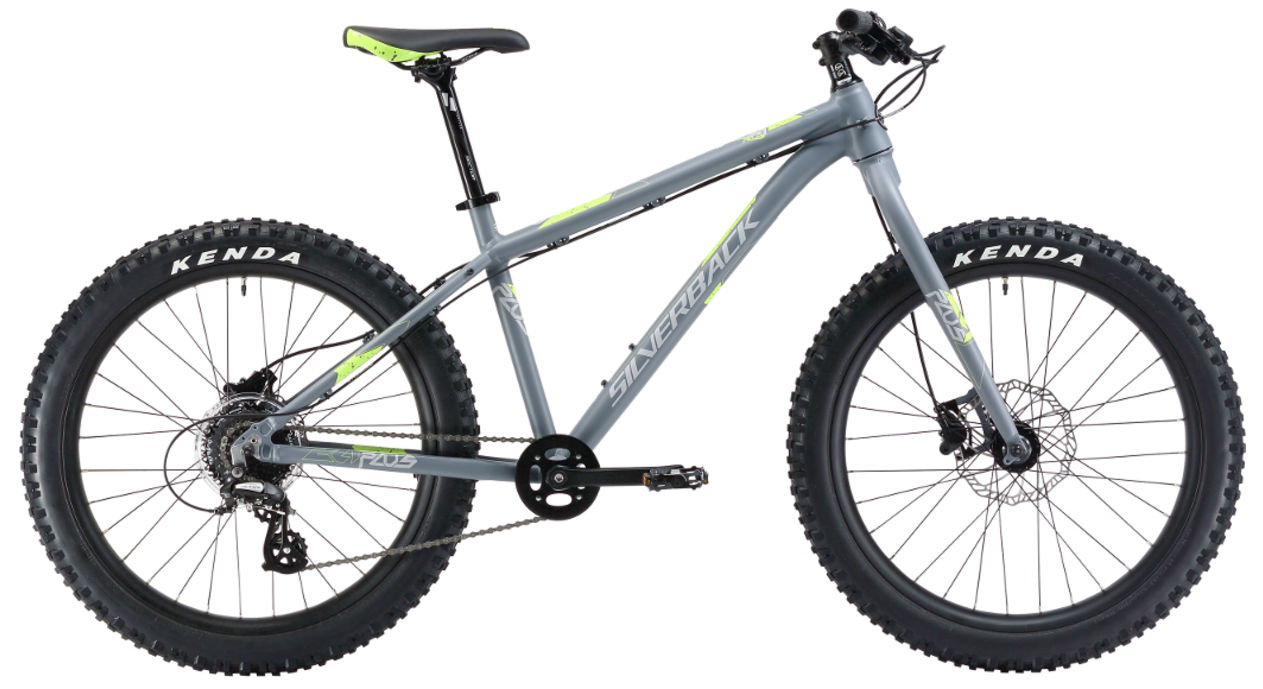

2017 Silverback Spyke Plus geometry
Full frame geometry for the 2017 Silverback Spyke Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 534 | 382 | 73.5 | 69 | 90 | 505 | 330 | 696 | 418 | 990 |
| L | 543 | 404 | 73.5 | 69 | 100 | 540 | 380 | 723 | 418 | 1028 |
All measurements in millimetres unless marked (°) for angles.
