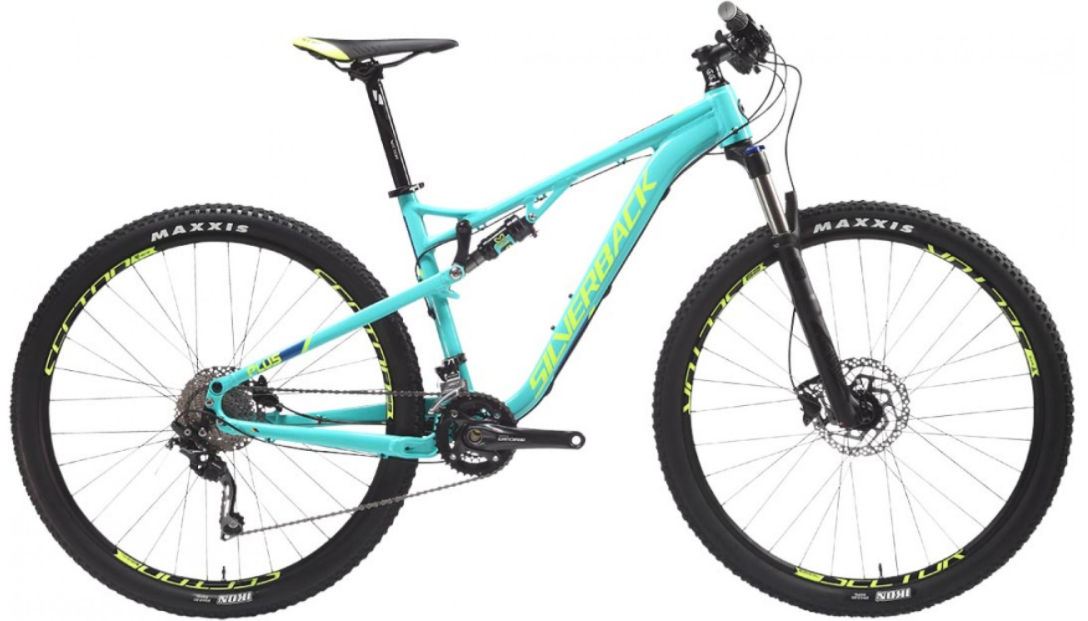

2017 Silverback Sprint geometry
Full frame geometry for the 2017 Silverback Sprint, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 600 | 432 | 74 | 70.5 | 100 | 605 | 450 | 774 | 460 | 1137 |
| S | 600 | 402 | 74 | 70.5 | 100 | 575 | 400 | 772 | 460 | 1107 |
| L | 615 | 448 | 74 | 70.5 | 115 | 625 | 480 | 780 | 460 | 1158 |
| XL | 629 | 464 | 74 | 70.5 | 130 | 645 | 530 | 784 | 460 | 1179 |
All measurements in millimetres unless marked (°) for angles.
