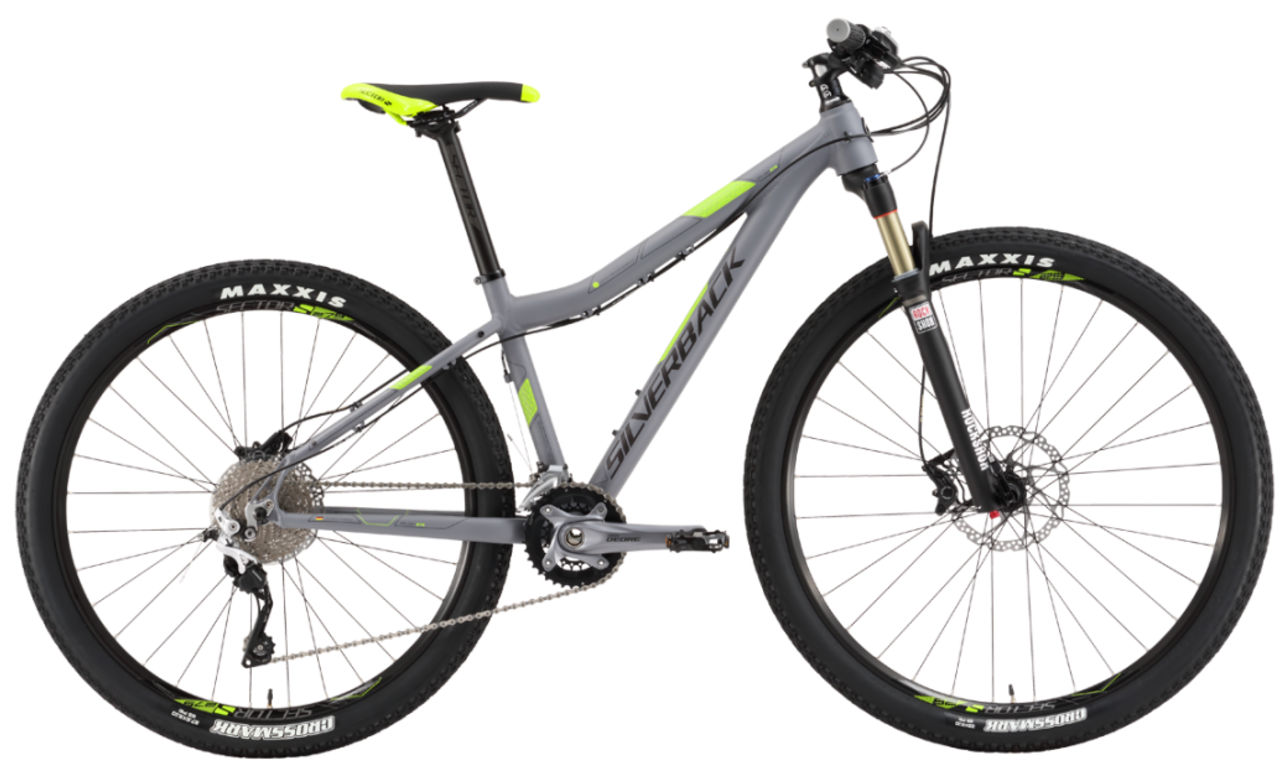

2017 Silverback Splash 279 geometry
Full frame geometry for the 2017 Silverback Splash 279, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 375 | 74 | 69.5 | 115 | 540 | 380 | 660 | 428 | 1049 |
| M | 594 | 386 | 73 | 69.5 | 130 | 568 | 430 | 637 | 428 | 1068 |
All measurements in millimetres unless marked (°) for angles.
