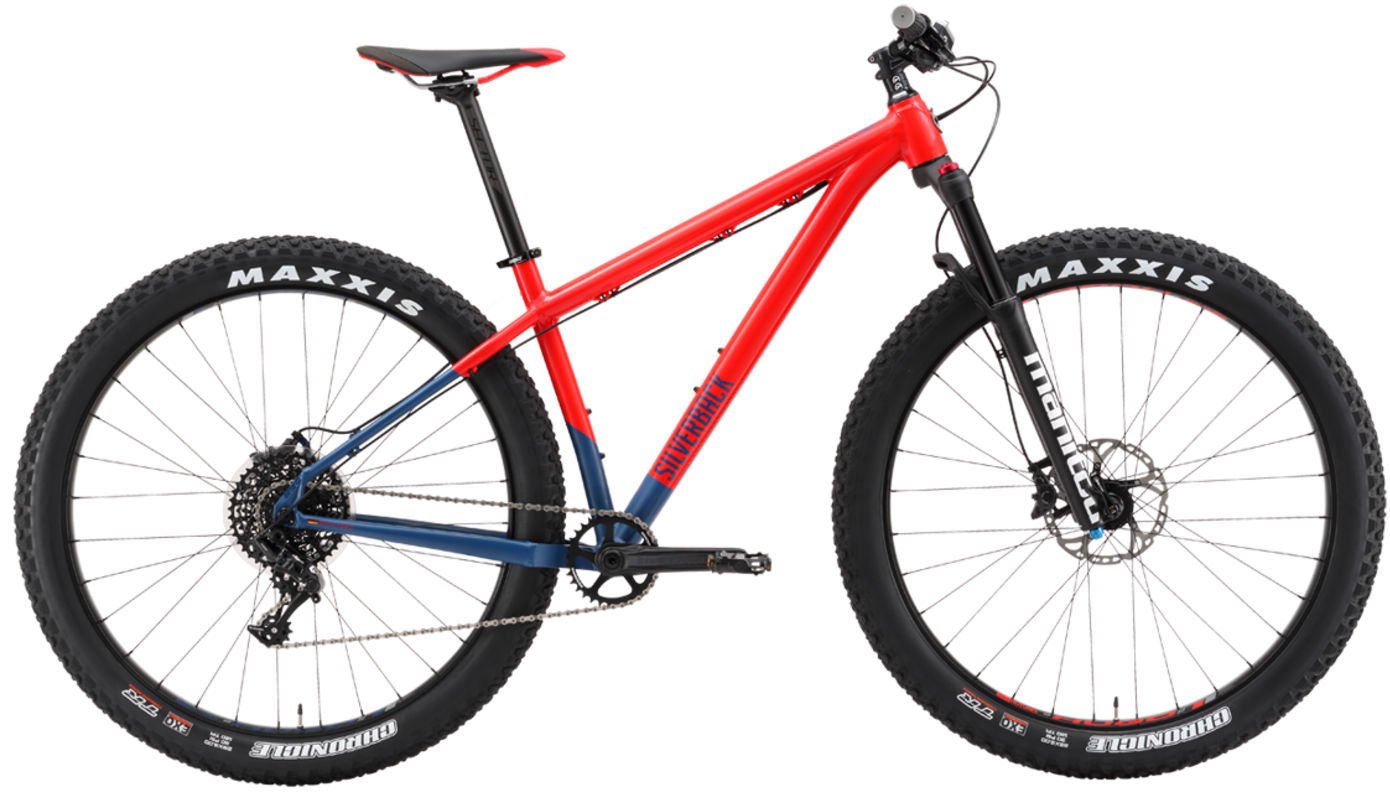

2017 Silverback Sphere geometry
Full frame geometry for the 2017 Silverback Sphere, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 552 | 406 | 73.5 | 69 | 100 | 570 | 390 | 738 | 435 | 1082 |
| XS | 552 | 386 | 73.5 | 69 | 100 | 550 | 370 | 732 | 435 | 1062 |
| M | 561 | 434 | 73.5 | 69 | 110 | 600 | 440 | 765 | 435 | 1113 |
| L | 575 | 450 | 73.5 | 69 | 125 | 620 | 490 | 797 | 435 | 1134 |
| XL | 589 | 466 | 73.5 | 69 | 140 | 640 | 540 | 828 | 435 | 1155 |
All measurements in millimetres unless marked (°) for angles.
