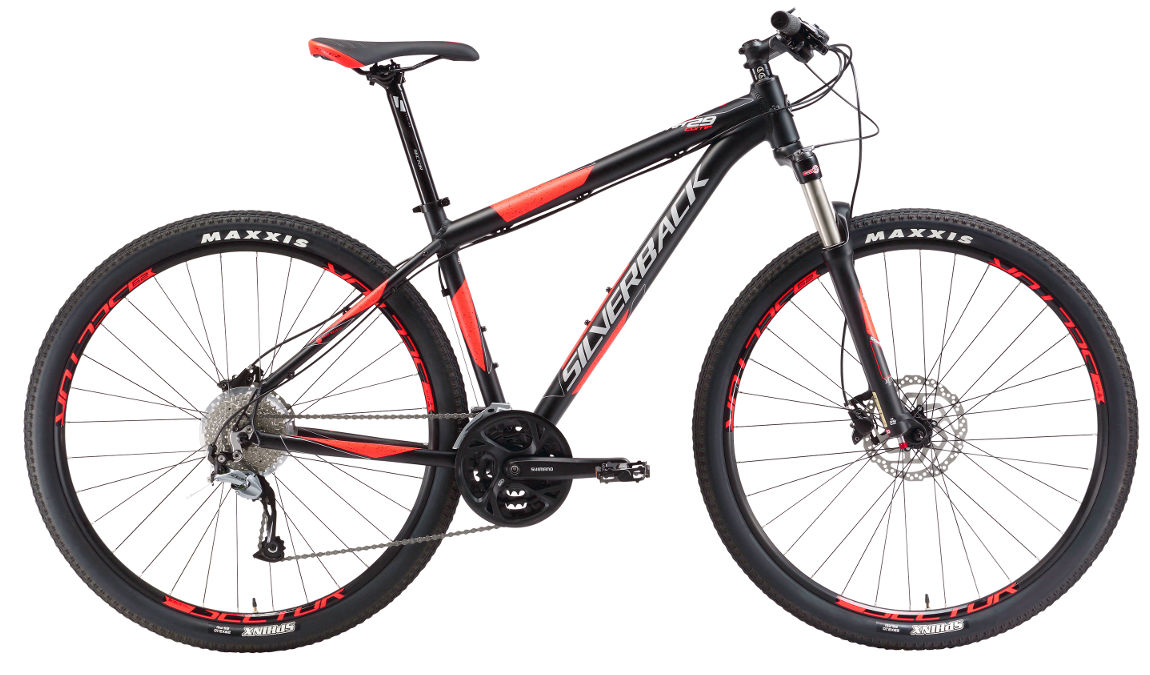

2017 Silverback Spectra geometry
Full frame geometry for the 2017 Silverback Spectra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 618 | 386 | 73 | 70 | 105 | 575 | 400 | 794 | 445 | 1074 |
| M | 622 | 414 | 73 | 70.5 | 105 | 605 | 450 | 819 | 445 | 1104 |
| L | 627 | 434 | 73 | 70.5 | 110 | 625 | 500 | 846 | 445 | 1124 |
| XL | 642 | 449 | 73 | 70.5 | 125 | 645 | 550 | 878 | 445 | 1145 |
All measurements in millimetres unless marked (°) for angles.
