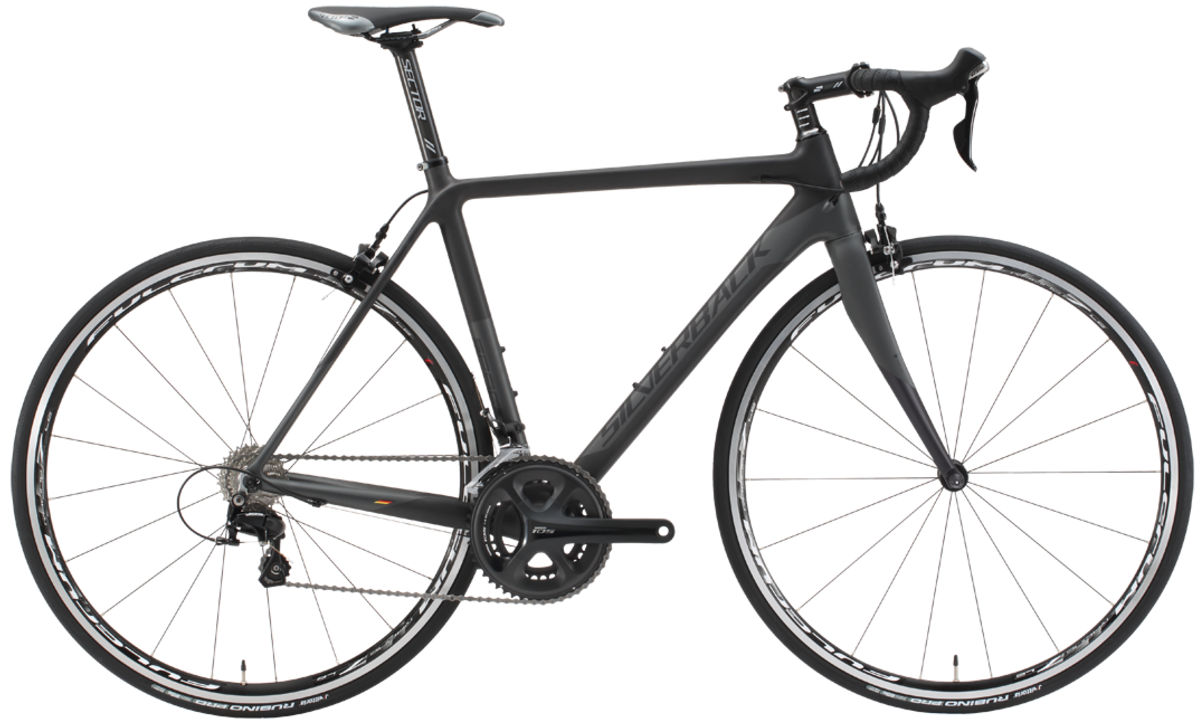

2017 Silverback Space geometry
Full frame geometry for the 2017 Silverback Space, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 375 | 75 | 72 | 120 | 514 | 500 | 745 | 406 | 967 | 38 |
| S | 530 | 380 | 74.5 | 72 | 130 | 527 | 520 | 759 | 406 | 974 | 38 |
| M | 546 | 383 | 74 | 72.5 | 145 | 540 | 540 | 773 | 406 | 978 | 38 |
| L | 556 | 393 | 73.5 | 72.5 | 155 | 558 | 560 | 790 | 406 | 991 | 38 |
| XL | 572 | 398 | 73.5 | 73 | 170 | 568 | 580 | 808 | 406 | 997 | 38 |
| XXL | 591 | 398 | 73 | 73 | 190 | 578 | 600 | 826 | 406 | 1002 | 38 |
All measurements in millimetres unless marked (°) for angles.
