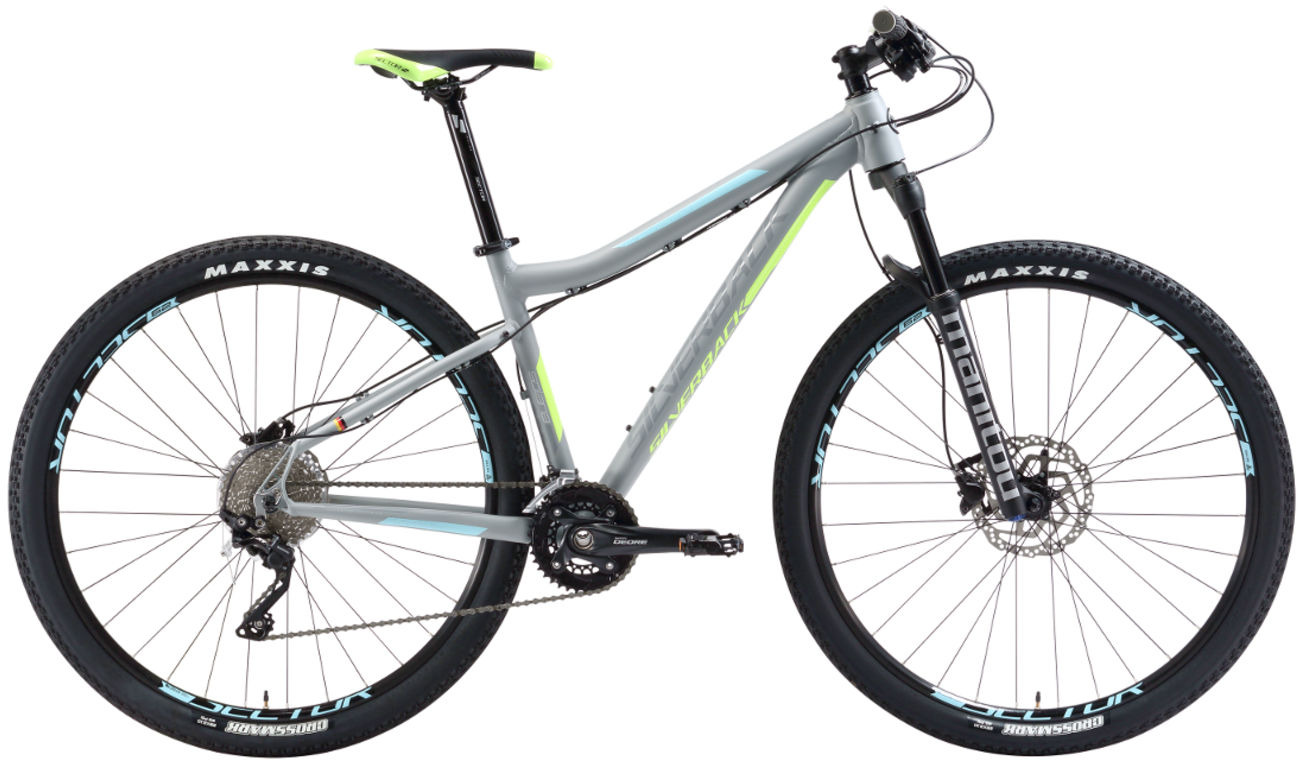

2017 Silverback Solana geometry
Full frame geometry for the 2017 Silverback Solana, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 370 | 73 | 69.5 | 100 | 550 | 380 | 715 | 435 | 1051 |
| M | 618 | 391 | 73 | 70.5 | 100 | 580 | 430 | 758 | 440 | 1074 |
| L | 758 | 418 | 73 | 70.5 | 110 | 610 | 470 | 788 | 440 | 1104 |
All measurements in millimetres unless marked (°) for angles.
