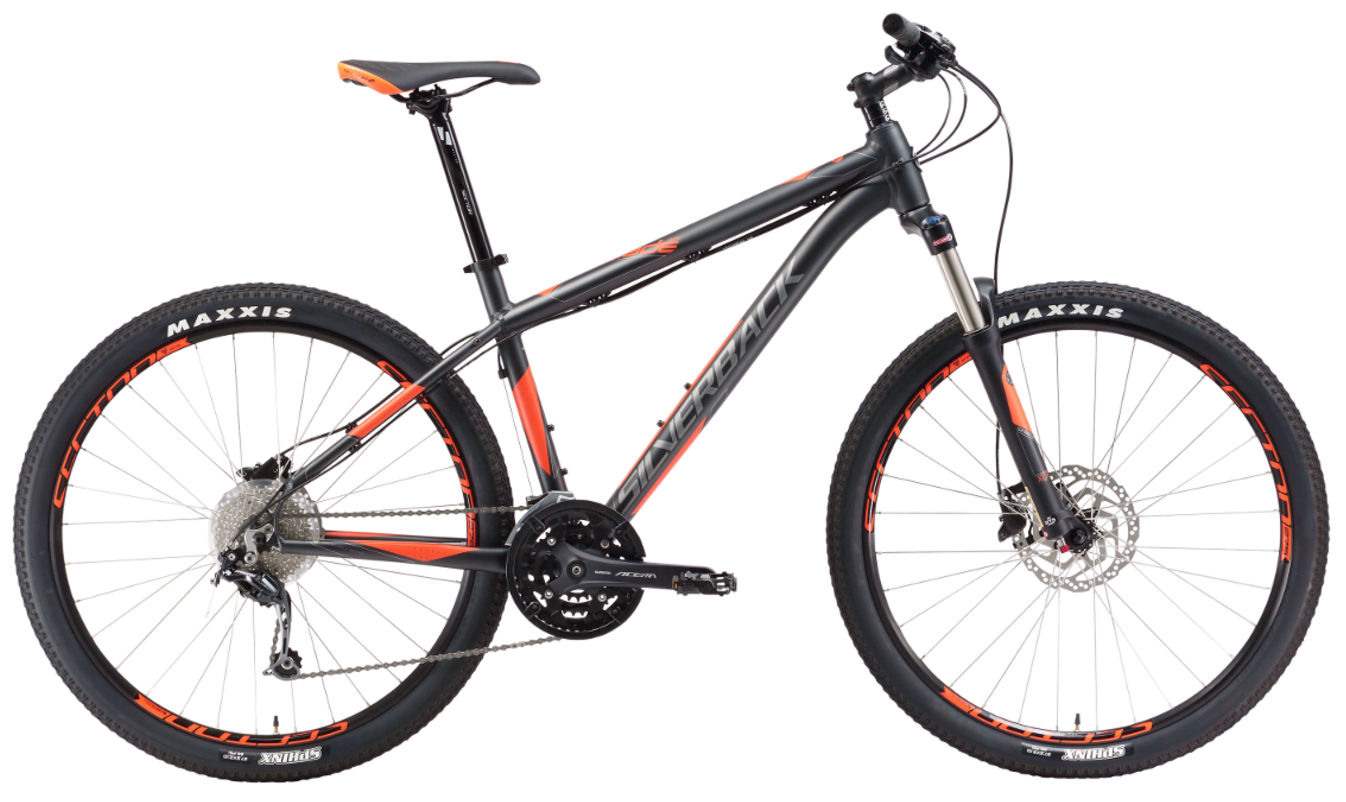

2017 Silverback Slade geometry
Full frame geometry for the 2017 Silverback Slade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 587 | 380 | 73.5 | 69 | 105 | 554 | 360 | 728 | 435 | 1066 |
| S | 592 | 403 | 73.5 | 69 | 110 | 578 | 400 | 744 | 435 | 1090 |
| M | 596 | 426 | 73.5 | 69 | 115 | 603 | 440 | 772 | 435 | 1116 |
| L | 606 | 448 | 73.5 | 69 | 125 | 628 | 495 | 808 | 435 | 1141 |
All measurements in millimetres unless marked (°) for angles.
