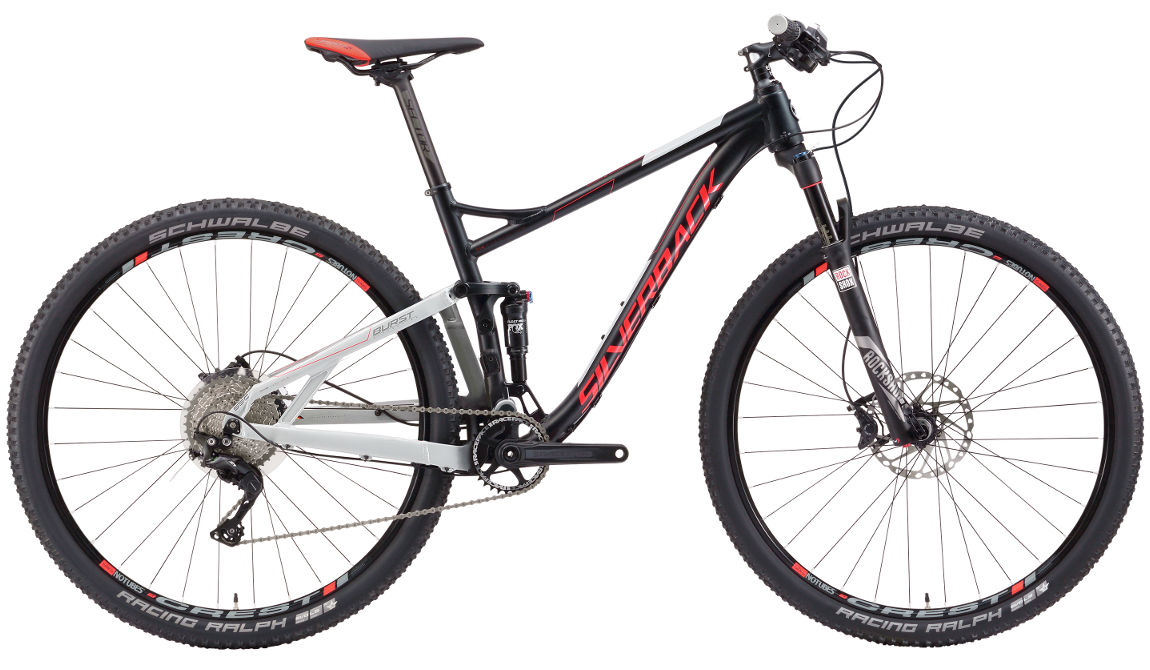

2017 Silverback Sido geometry
Full frame geometry for the 2017 Silverback Sido, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 397 | 73.5 | 70.5 | 90 | 575 | 400 | 764 | 442 | 1080 |
| M | 600 | 428 | 73.5 | 70.5 | 100 | 605 | 450 | 776 | 442 | 1110 |
| L | 614 | 440 | 73.5 | 70.5 | 115 | 625 | 500 | 782 | 442 | 1130 |
| XL | 628 | 454 | 73.5 | 70.5 | 130 | 645 | 550 | 806 | 442 | 1150 |
All measurements in millimetres unless marked (°) for angles.
