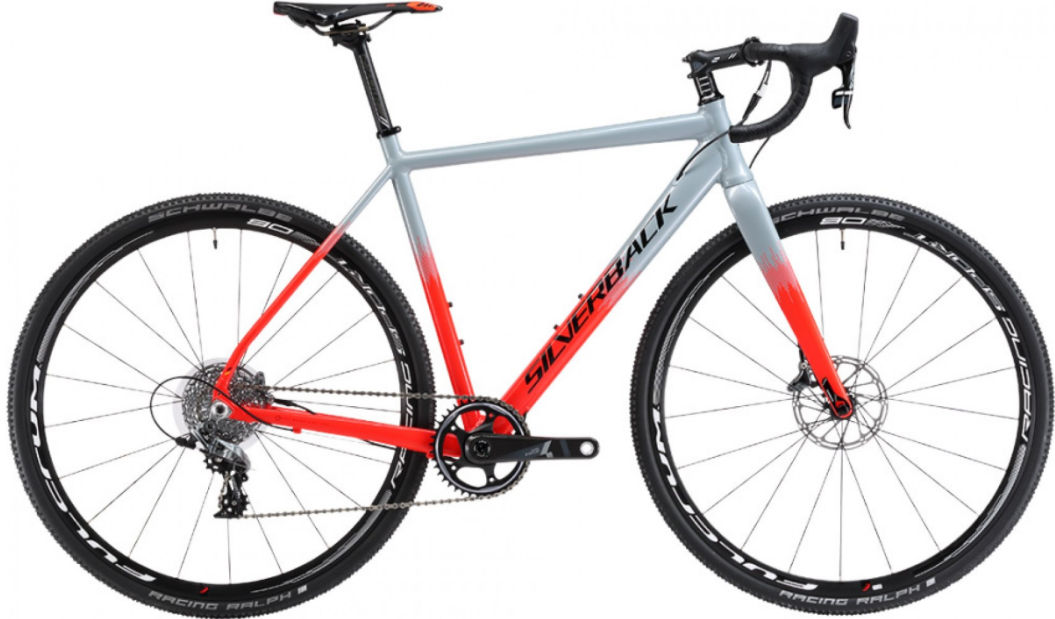

2017 Silverback Siablo CX geometry
Full frame geometry for the 2017 Silverback Siablo CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 524 | 360 | 74.5 | 71 | 100 | 505 | 465 | 738 | 422 | 980 | 45 |
| XS | 545 | 366 | 74 | 71.5 | 120 | 522 | 500 | 766 | 422 | 989 | 45 |
| S | 564 | 378 | 73.5 | 72 | 140 | 545 | 535 | 794 | 422 | 1003 | 45 |
| M | 583 | 381 | 73 | 72 | 160 | 560 | 555 | 813 | 422 | 1013 | 45 |
| L | 602 | 391 | 73 | 72.5 | 180 | 575 | 575 | 834 | 422 | 1024 | 45 |
| XL | 623 | 394 | 72.5 | 73 | 200 | 590 | 595 | 854 | 422 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
