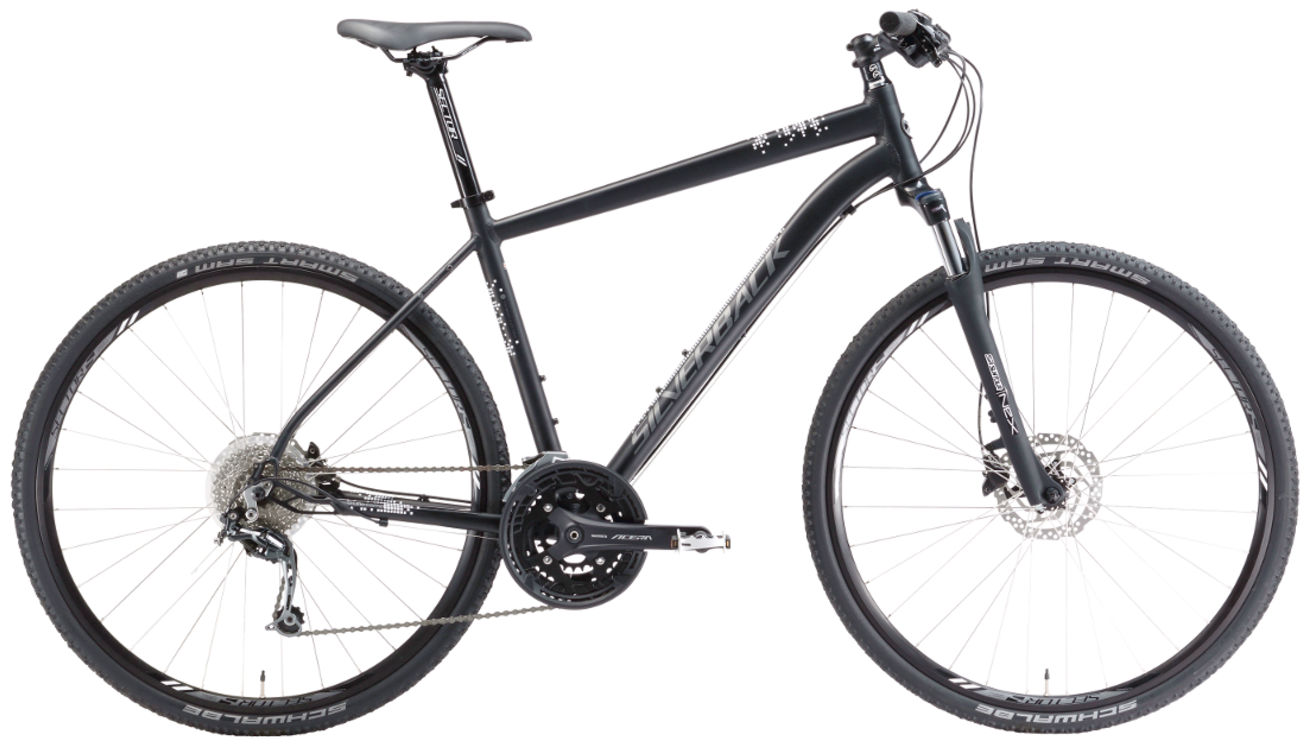

2017 Silverback Shuffle geometry
Full frame geometry for the 2017 Silverback Shuffle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 392 | 73.5 | 70 | 105 | 567 | 390 | 754 | 444 | 1071 |
| M | 610 | 408 | 73 | 70.5 | 120 | 594 | 440 | 786 | 444 | 1088 |
| L | 624 | 428 | 73 | 70.5 | 135 | 618 | 490 | 814 | 444 | 1112 |
| XL | 640 | 436 | 72.5 | 71 | 150 | 638 | 545 | 848 | 444 | 1121 |
All measurements in millimetres unless marked (°) for angles.
