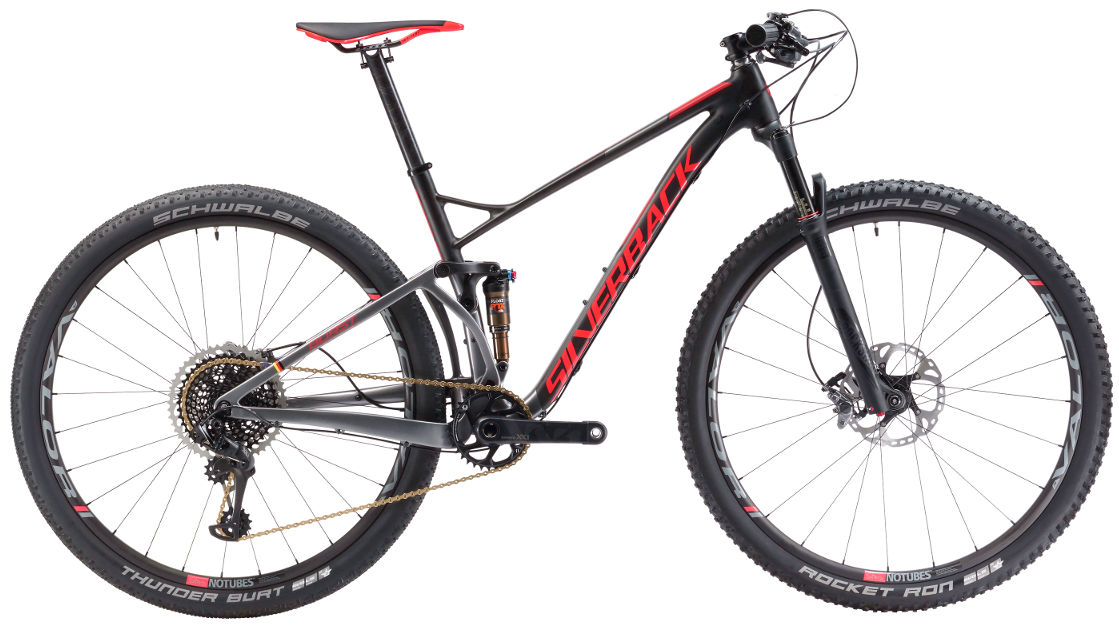

2017 Silverback Sesta geometry
Full frame geometry for the 2017 Silverback Sesta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 400 | 73.5 | 70.5 | 90 | 575 | 400 | 746 | 442 | 1083 |
| M | 598 | 428 | 73.5 | 70.5 | 100 | 605 | 450 | 753 | 442 | 1113 |
| L | 612 | 446 | 73.5 | 70.5 | 115 | 628 | 500 | 756 | 442 | 1137 |
All measurements in millimetres unless marked (°) for angles.
