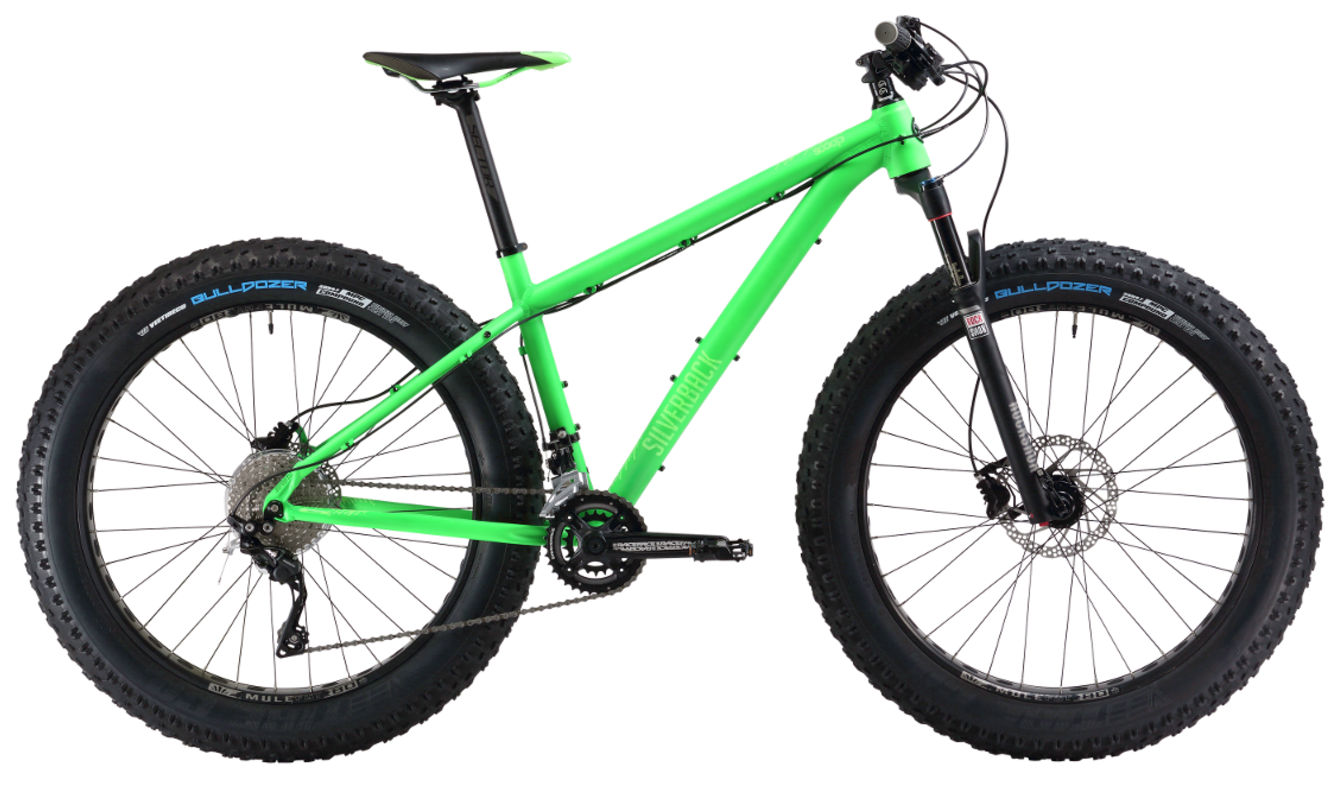

2017 Silverback Scoop Double geometry
Full frame geometry for the 2017 Silverback Scoop Double, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 617 | 412 | 73.5 | 71.5 | 100 | 600 | 430 | 798 | 450 | 1110 |
| S | 617 | 382 | 73.5 | 71.5 | 100 | 570 | 380 | 780 | 450 | 1080 |
| L | 631 | 429 | 73.5 | 71.5 | 115 | 622 | 480 | 828 | 450 | 1132 |
| XL | 646 | 448 | 73.5 | 71.5 | 130 | 645 | 530 | 860 | 450 | 1156 |
All measurements in millimetres unless marked (°) for angles.
