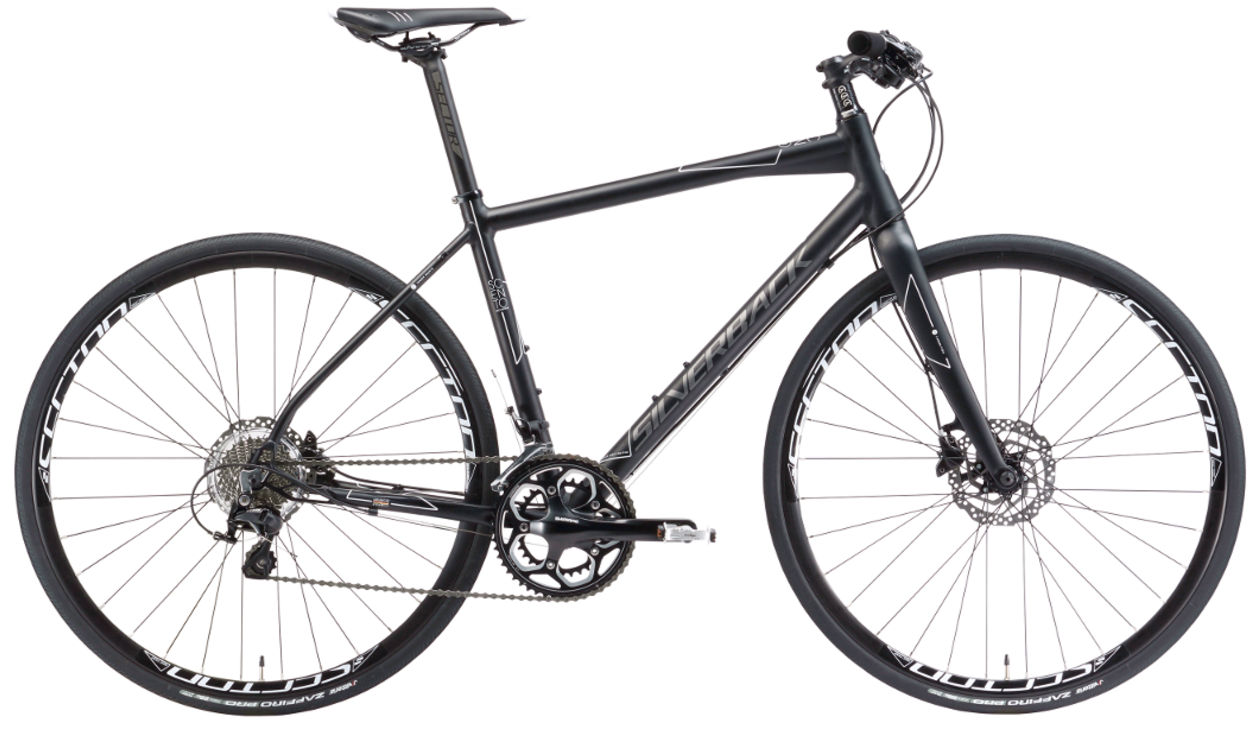

2017 Silverback Scento geometry
Full frame geometry for the 2017 Silverback Scento, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 522 | 365 | 75 | 70 | 105 | 505 | 360 | 695 | 435 | 1007 |
| XS | 537 | 376 | 75 | 70 | 120 | 520 | 400 | 720 | 435 | 1023 |
| S | 554 | 396 | 75 | 71 | 135 | 545 | 440 | 746 | 435 | 1040 |
| M | 575 | 405 | 74 | 71.5 | 155 | 570 | 485 | 778 | 435 | 1051 |
| L | 599 | 412 | 73.5 | 71.5 | 180 | 590 | 525 | 810 | 435 | 1066 |
| XL | 625 | 419 | 73 | 72 | 205 | 610 | 560 | 839 | 435 | 1076 |
All measurements in millimetres unless marked (°) for angles.
