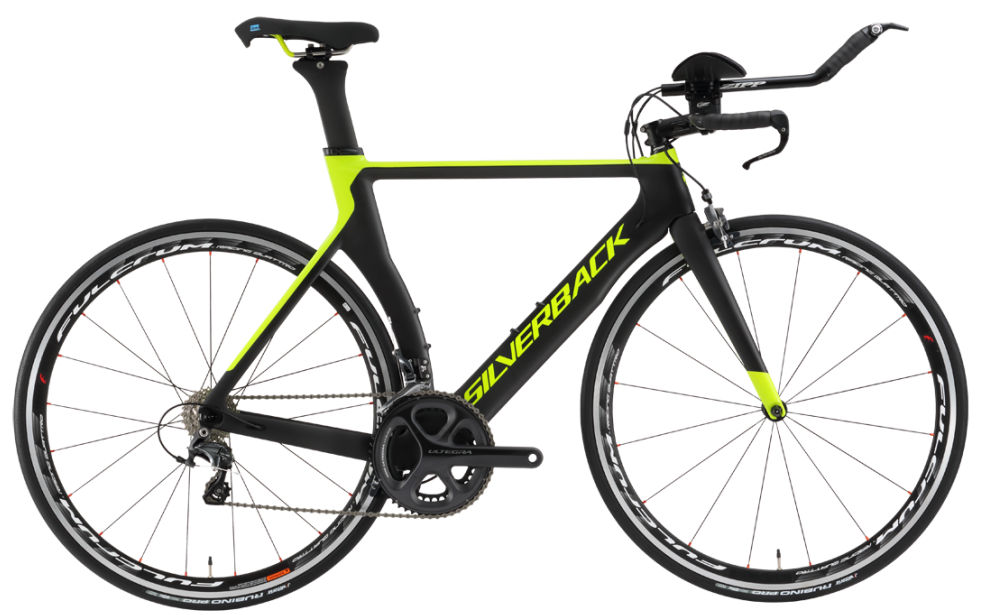

2017 Silverback Scalini geometry
Full frame geometry for the 2017 Silverback Scalini, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 496 | 386 | 76 | 72.5 | 95 | 510 | 515 | 770 | 395 | 955 | 43 |
| S | 502 | 405 | 76 | 72.5 | 100 | 530 | 520 | 776 | 395 | 976 | 43 |
| M | 520 | 420 | 76 | 72.5 | 120 | 550 | 540 | 794 | 395 | 997 | 43 |
| L | 530 | 438 | 76 | 72.5 | 130 | 570 | 550 | 804 | 395 | 1018 | 43 |
| XL | 549 | 448 | 76 | 72.5 | 150 | 585 | 570 | 826 | 395 | 1034 | 43 |
All measurements in millimetres unless marked (°) for angles.
