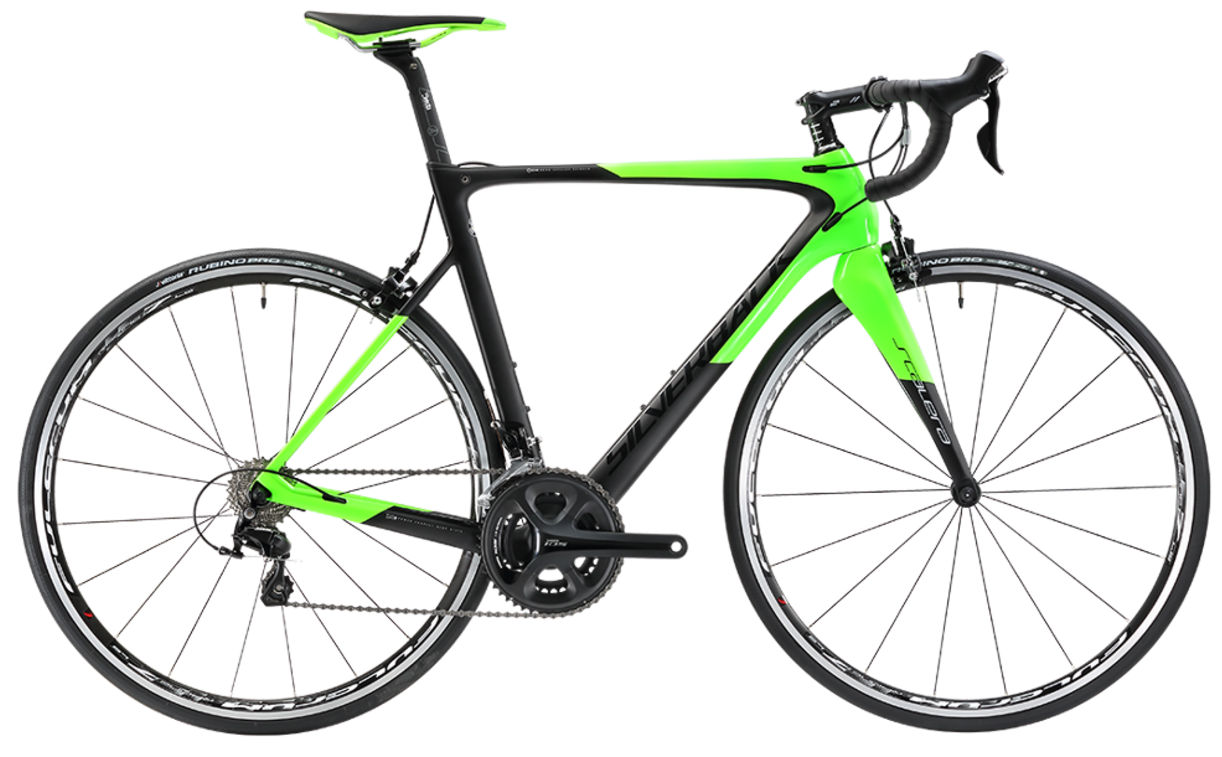

2017 Silverback Scalera geometry
Full frame geometry for the 2017 Silverback Scalera, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 372 | 74.5 | 72 | 105 | 512 | 490 | 756 | 405 | 906 | 45 |
| S | 524 | 385 | 74.5 | 72.5 | 125 | 530 | 520 | 781 | 405 | 975 | 45 |
| M | 540 | 390 | 74 | 72.8 | 140 | 545 | 540 | 798 | 405 | 983 | 41 |
| L | 550 | 398 | 73.5 | 72.8 | 150 | 560 | 560 | 812 | 405 | 993 | 41 |
| XL | 570 | 404 | 73 | 73 | 170 | 578 | 580 | 830 | 405 | 1003 | 41 |
| XXL | 599 | 417 | 73 | 73.2 | 200 | 600 | 610 | 859 | 405 | 1023 | 41 |
All measurements in millimetres unless marked (°) for angles.
