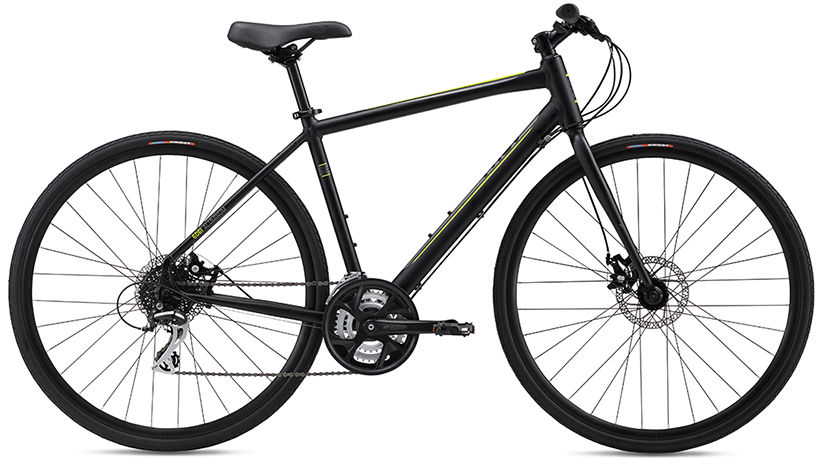

2016 SE Bikes Monterey geometry
Full frame geometry for the 2016 SE Bikes Monterey, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 555 | 373 | 73 | 71 | 130 | 543 | 432 | 748 | 70 | 592 | 440 | 1022 | 45 |
| M/19 | 577 | 388 | 73 | 71 | 150 | 564 | 483 | 781 | 70 | 614 | 440 | 1044 | 45 |
| L/21 | 593 | 410 | 73 | 71 | 170 | 591 | 534 | 814 | 70 | 640 | 440 | 1071 | 45 |
All measurements in millimetres unless marked (°) for angles.
