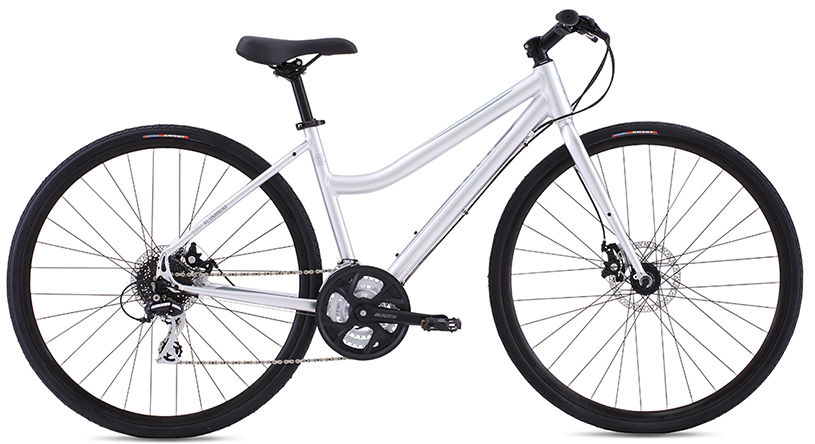

2016 SE Bikes Monterey Step-Through geometry
Full frame geometry for the 2016 SE Bikes Monterey Step-Through, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 526 | 384 | 74 | 69.5 | 110 | 537 | 381 | 812 | 65 | 609 | 440 | 1041 | 45 |
| M/17 | 537 | 401 | 74 | 70 | 120 | 554 | 432 | 824 | 65 | 625 | 440 | 1057 | 45 |
All measurements in millimetres unless marked (°) for angles.
