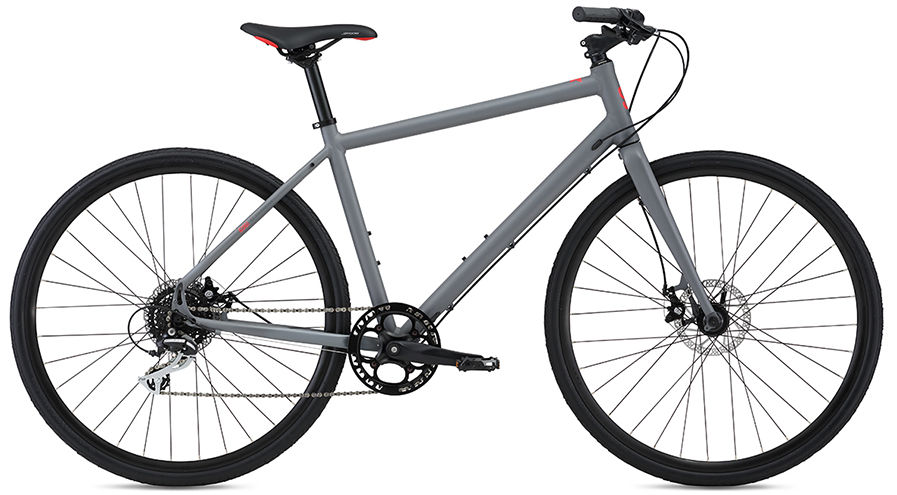

2016 SE Bikes Boilermaker geometry
Full frame geometry for the 2016 SE Bikes Boilermaker, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 543 | 384 | 73 | 70.5 | 130 | 550 | 381 | 745 | 60 | 606 | 440 | 1039 | 45 |
| M/17 | 567 | 390 | 73 | 71 | 150 | 580 | 432 | 777 | 60 | 632 | 440 | 1065 | 45 |
| L/19 | 582 | 422 | 73 | 71 | 170 | 600 | 483 | 820 | 60 | 652 | 440 | 1085 | 45 |
| XL/21 | 601 | 436 | 73 | 71 | 190 | 620 | 533 | 852 | 60 | 673 | 440 | 1106 | 45 |
All measurements in millimetres unless marked (°) for angles.
