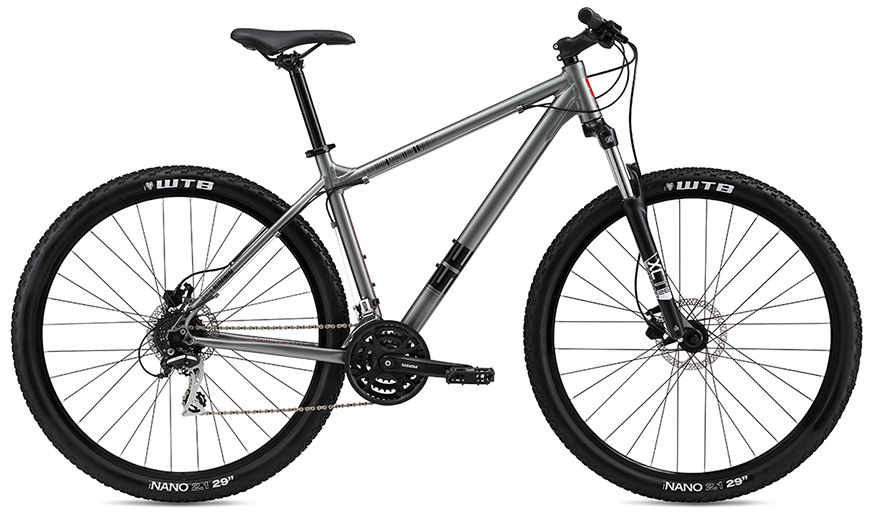

2016 SE Bikes Big Mountain 29 geometry
Full frame geometry for the 2016 SE Bikes Big Mountain 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 632 | 383 | 73 | 71 | 110 | 572 | 432 | 797 | 60 | 641 | 445 | 1079 | 38 |
| L/19 | 666 | 401 | 73 | 71 | 115 | 589 | 483 | 835 | 60 | 653 | 445 | 1091 | 38 |
| XL/21 | 675 | 436 | 73 | 71 | 125 | 601 | 534 | 865 | 60 | 682 | 445 | 1120 | 38 |
All measurements in millimetres unless marked (°) for angles.
