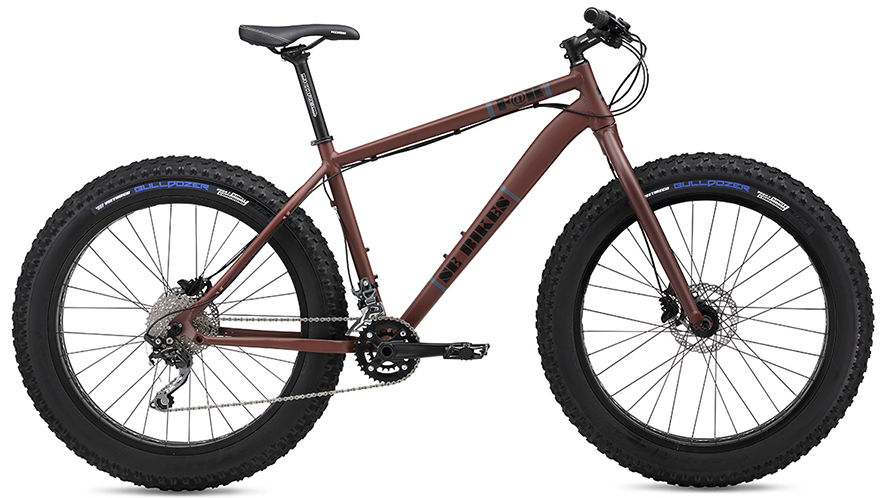

2016 SE Bikes F@ geometry
Full frame geometry for the 2016 SE Bikes F@, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 594 | 406 | 73 | 69.5 | 125 | 571 | 381 | 782 | 54 | 664 | 467 | 1126 | 50 |
| M/17 | 604 | 419 | 73 | 69.5 | 135 | 580 | 432 | 811 | 54 | 679 | 467 | 1141 | 50 |
| L/19 | 613 | 431 | 73 | 69.5 | 145 | 593 | 483 | 840 | 54 | 695 | 467 | 1157 | 50 |
| XL/21 | 634 | 439 | 73 | 69.5 | 155 | 633 | 533 | 965 | 54 | 711 | 467 | 1173 | 50 |
All measurements in millimetres unless marked (°) for angles.
