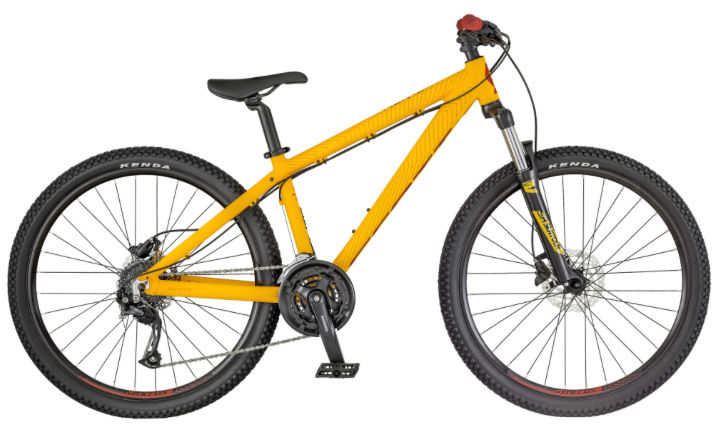

2018 Scott Voltage YZ geometry
Full frame geometry for the 2018 Scott Voltage YZ, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 568 | 377 | 74 | 68.5 | 100 | 540 | 330 | 684 | 32 | 420 | 1052 |
| S | 580 | 378 | 73.5 | 69 | 110 | 550 | 370 | 715 | 32 | 420 | 1052 |
| M | 589 | 380 | 73 | 69 | 120 | 560 | 410 | 746 | 32 | 420 | 1058 |
| L | 606 | 385 | 73 | 69.5 | 135 | 570 | 460 | 786 | 32 | 420 | 1063 |
| XL | 620 | 396 | 73 | 69.5 | 150 | 585 | 510 | 823 | 32 | 420 | 1079 |
All measurements in millimetres unless marked (°) for angles.
