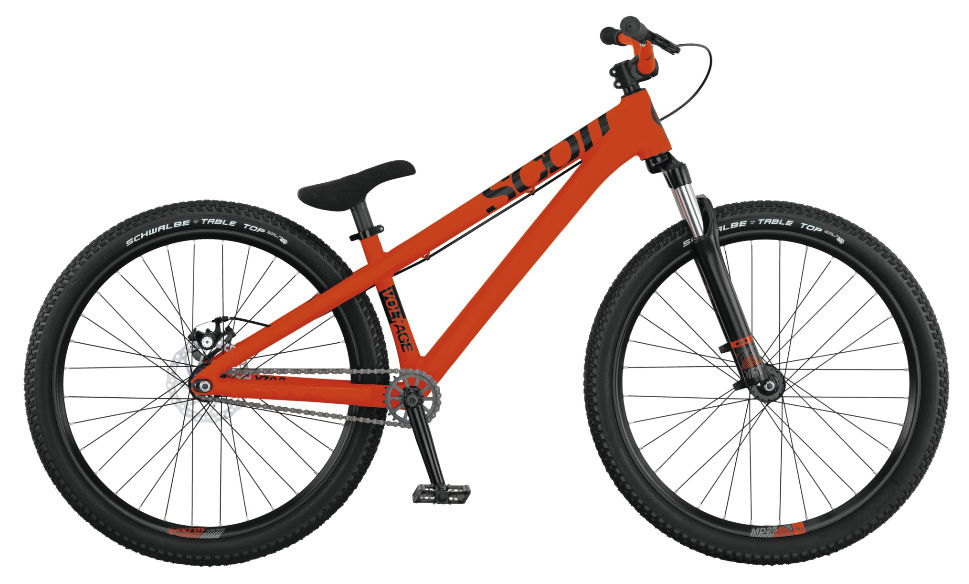

2015 Scott Voltage Jump geometry
Full frame geometry for the 2015 Scott Voltage Jump, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 571 | 403 | 71 | 68.5 | 120 | 600 | 315 | 702 | 15 | 667 | 380 | 1047 |
All measurements in millimetres unless marked (°) for angles.
