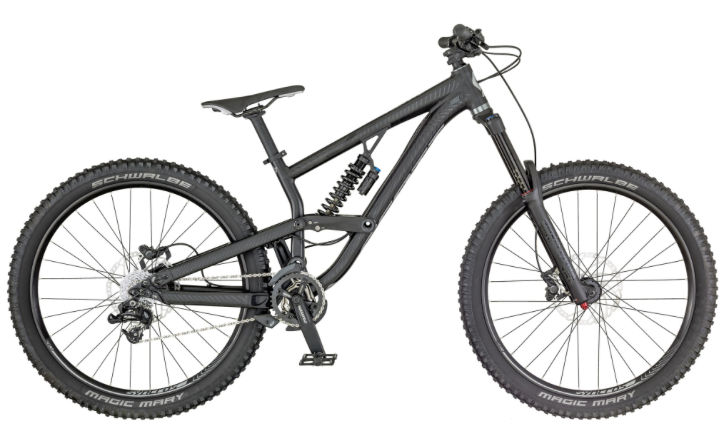

2018 Scott Voltage FR geometry
Full frame geometry for the 2018 Scott Voltage FR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 623 | 445 | 73.5 | 64 | 115 | 630 | 369 | 770 | 13 | 425 | 1225 |
| M | 623 | 420 | 73.5 | 64 | 115 | 605 | 369 | 771 | 13 | 425 | 1200 |
| S | 623 | 385 | 73.5 | 64 | 115 | 570 | 369 | 777 | 13 | 425 | 1165 |
All measurements in millimetres unless marked (°) for angles.
