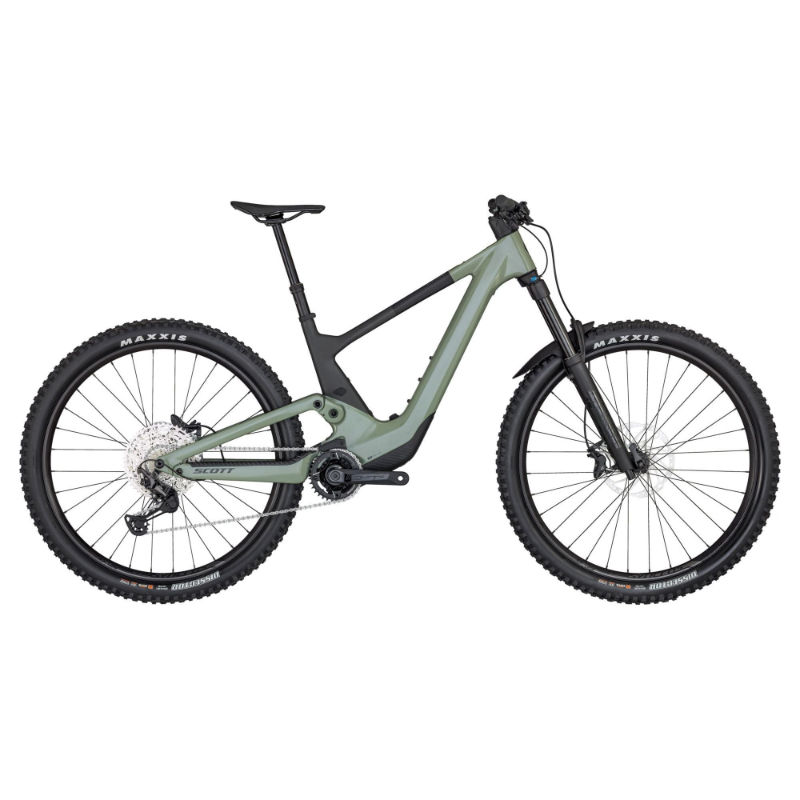

2026 Scott Voltage eRIDE geometry
Full frame geometry for the 2026 Scott Voltage eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622.3 | 437.4 | 77.1 | 63.9 | 110 | 580.2 | 404.6 | 765 | 27.4 | 455 | 1232.8 | 44 | 135.7 |
| M | 622.4 | 457.2 | 77.1 | 63.9 | 110 | 600 | 424.5 | 765 | 27.5 | 455 | 1252.6 | 44 | 135.7 |
| L | 631.3 | 485 | 77.1 | 63.9 | 120 | 629.9 | 449.6 | 772 | 27.4 | 455 | 1284.8 | 44 | 135.7 |
| XL | 640.2 | 512.7 | 77.1 | 63.9 | 130 | 659.8 | 479.7 | 788 | 27.3 | 455 | 1316.9 | 44 | 135.7 |
All measurements in millimetres unless marked (°) for angles.
