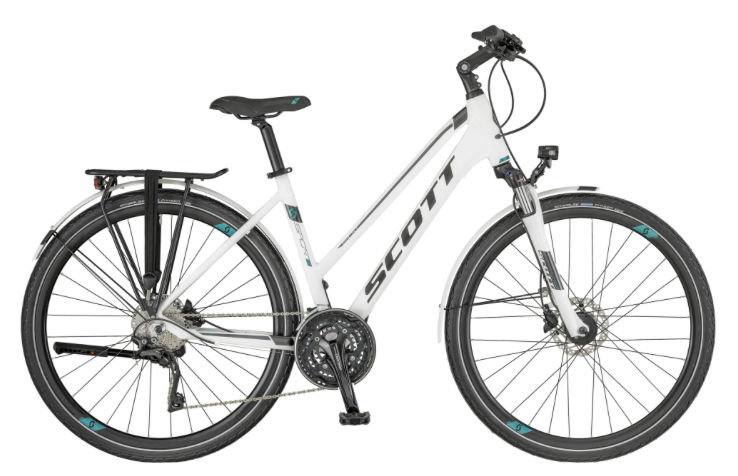

2018 Scott Sub Sport Ladys Disc geometry
Full frame geometry for the 2018 Scott Sub Sport Ladys Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 645 | 379 | 73.5 | 70 | 185 | 570 | 480 | 678 | 65 | 455 | 1094 |
| S | 645 | 364 | 73.5 | 70 | 185 | 555 | 440 | 681 | 65 | 455 | 1079 |
| L | 665 | 404 | 73.5 | 70 | 185 | 595 | 520 | 681 | 65 | 455 | 1119 |
All measurements in millimetres unless marked (°) for angles.
