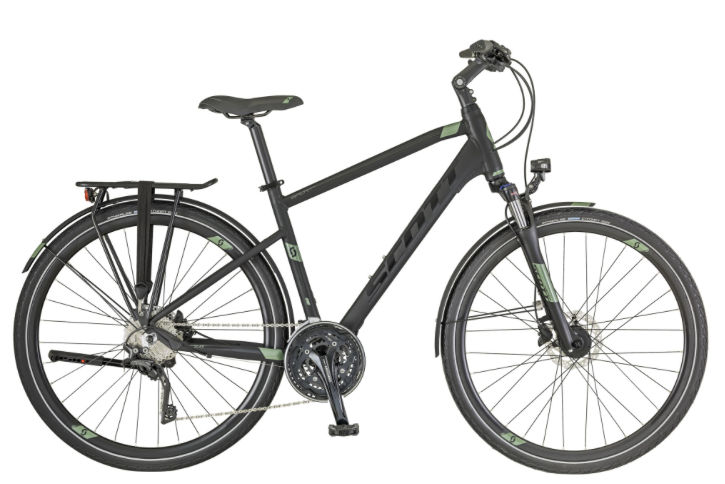

2018 Scott Sub Sport Disc geometry
Full frame geometry for the 2018 Scott Sub Sport Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 651 | 402 | 73.5 | 70 | 185 | 595 | 520 | 823 | 60 | 455 | 1116 |
| M | 651 | 387 | 73.5 | 70 | 185 | 580 | 480 | 801 | 60 | 455 | 1101 |
| S | 651 | 374 | 73.5 | 70 | 185 | 567 | 450 | 785 | 60 | 455 | 1088 |
| XL | 651 | 412 | 73.5 | 70 | 185 | 605 | 560 | 844 | 60 | 455 | 1126 |
All measurements in millimetres unless marked (°) for angles.
