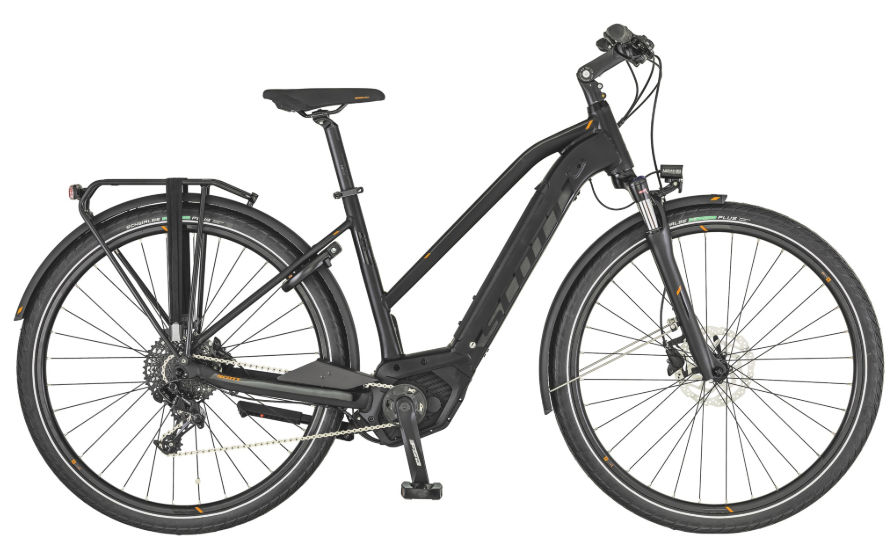

2019 Scott Sub eRide Lady geometry
Full frame geometry for the 2019 Scott Sub eRide Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 629 | 404 | 74.5 | 69.5 | 130 | 579 | 440 | 686 | 74 | 490 | 1143 |
| M | 640 | 421 | 74.5 | 70 | 140 | 598 | 480 | 684 | 74 | 490 | 1158 |
| L | 662 | 435 | 74.5 | 70.5 | 160 | 618 | 520 | 687 | 74 | 490 | 1174 |
All measurements in millimetres unless marked (°) for angles.
