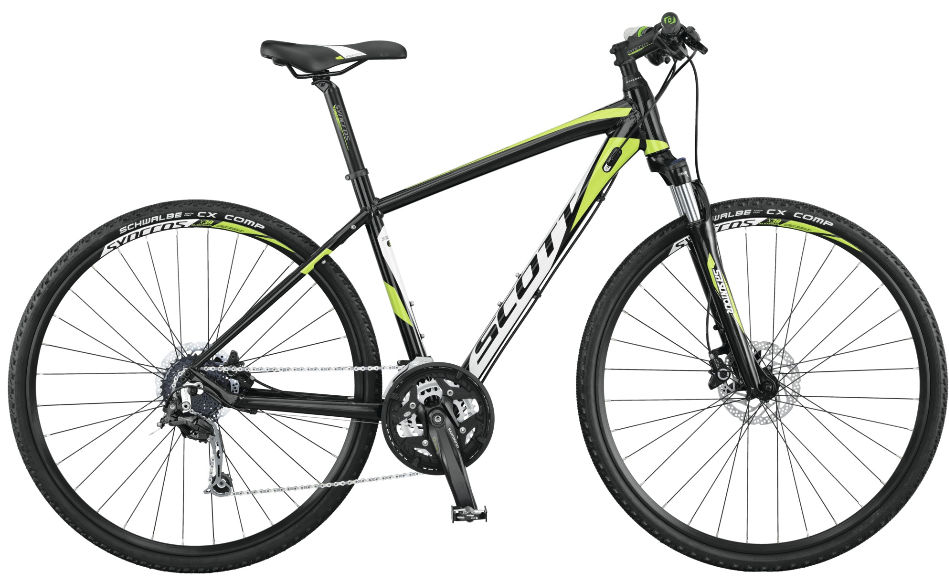

2015 Scott Sportster Suspension geometry
Full frame geometry for the 2015 Scott Sportster Suspension, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 387 | 73 | 71 | 105 | 567 | 450 | 460 | 56 | 618 | 456 | 1068 |
| M | 610 | 385 | 72.5 | 71.5 | 125 | 577 | 480 | 488 | 56 | 618 | 456 | 1068 |
| L | 631 | 391 | 72.3 | 72 | 145 | 592 | 510 | 514 | 56 | 625 | 456 | 1075 |
| XL | 651 | 396 | 72 | 72.3 | 165 | 608 | 550 | 542 | 56 | 634 | 456 | 1084 |
| XXL | 671 | 402 | 72 | 72.3 | 185 | 620 | 590 | 570 | 56 | 645 | 456 | 1096 |
All measurements in millimetres unless marked (°) for angles.
