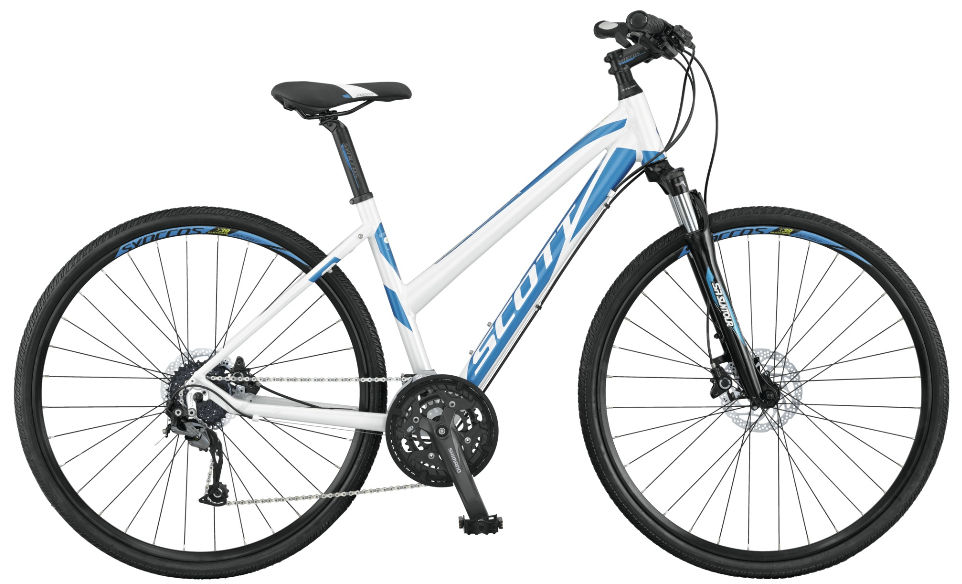

2015 Scott Sportster Lady geometry
Full frame geometry for the 2015 Scott Sportster Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 374 | 73.5 | 70.5 | 115 | 550 | 420 | 364 | 56 | 613 | 456 | 1063 |
| M | 612 | 378 | 73 | 71 | 130 | 565 | 460 | 370 | 56 | 617 | 456 | 1067 |
| L | 638 | 374 | 72.5 | 71.5 | 155 | 575 | 500 | 389 | 56 | 616 | 456 | 1066 |
| XL | 664 | 381 | 72.5 | 72 | 180 | 590 | 540 | 397 | 56 | 626 | 456 | 1076 |
All measurements in millimetres unless marked (°) for angles.
