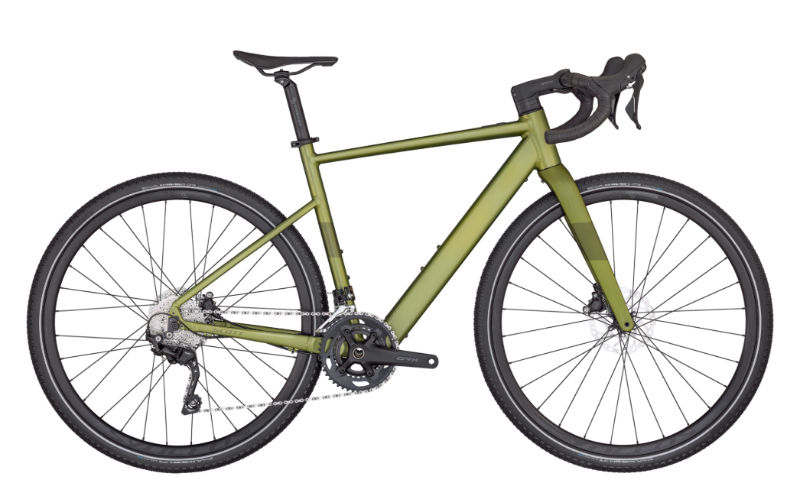

2025 Scott Speedster Gravel eRIDE geometry
Full frame geometry for the 2025 Scott Speedster Gravel eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 541.2 | 399 | 75 | 70 | 110 | 544 | 495 | 764 | 435 | 70 | 406 |
| S/52 | 550.6 | 402 | 75 | 70 | 120 | 549.5 | 500 | 771 | 435 | 70 | 75.6 |
| M/54 | 568.7 | 410 | 75 | 71 | 135 | 562.4 | 520 | 790 | 435 | 70 | 69 |
| L/56 | 587.6 | 416 | 75 | 71 | 155 | 573.4 | 540 | 806 | 435 | 70 | 69 |
| XL/58 | 606.5 | 424 | 75 | 71 | 175 | 586.5 | 580 | 828 | 435 | 70 | 69 |
All measurements in millimetres unless marked (°) for angles.
