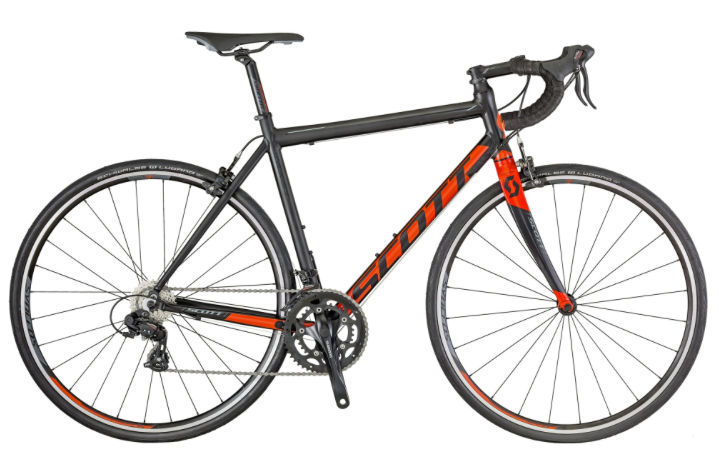

2018 Scott Speedster 50 geometry
Full frame geometry for the 2018 Scott Speedster 50, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 517 | 367 | 75 | 70.5 | 111 | 505 | 470 | 725 | 67 | 415 | 973 |
| XS/49 | 528 | 374 | 75 | 71 | 121 | 515 | 490 | 741 | 67 | 415 | 979 |
| S/52 | 550 | 377 | 74.5 | 72 | 141 | 530 | 520 | 768 | 67 | 415 | 981 |
| M/54 | 571 | 381 | 74 | 72.5 | 161 | 545 | 540 | 788 | 67 | 415 | 987 |
| L/56 | 592 | 385 | 73.5 | 73 | 181 | 560 | 560 | 808 | 67 | 415 | 992 |
| XL/58 | 612 | 389 | 73.1 | 73.3 | 201 | 575 | 580 | 827 | 67 | 415 | 999 |
| XXL/61 | 614 | 397 | 73 | 73.3 | 221 | 590 | 610 | 851 | 67 | 415 | 1013 |
All measurements in millimetres unless marked (°) for angles.
