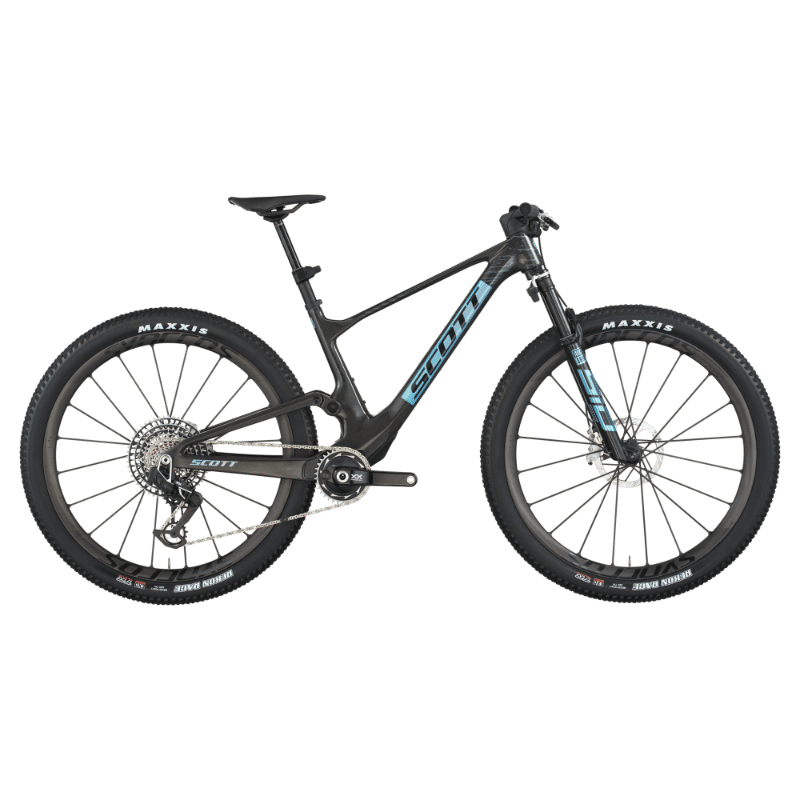

2026 Scott Spark RC geometry
Full frame geometry for the 2026 Scott Spark RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 602.5 | 441 | 76.1 | 67.2 | 90 | 590 | 440 | 765 | -45 | 437.5 | 1159 | 44 | 115 |
| S | 602.5 | 411 | 75.9 | 67.2 | 90 | 562 | 415 | 758 | -45 | 437.5 | 1129 | 44 | 115 |
| L | 616 | 471 | 76.6 | 67.2 | 105 | 614 | 490 | 776 | -45 | 437.5 | 1190 | 44 | 115 |
| XL | 625 | 501 | 76.9 | 67.2 | 115 | 642 | 540 | 799 | -45 | 437.5 | 1231 | 44 | 115 |
All measurements in millimetres unless marked (°) for angles.
